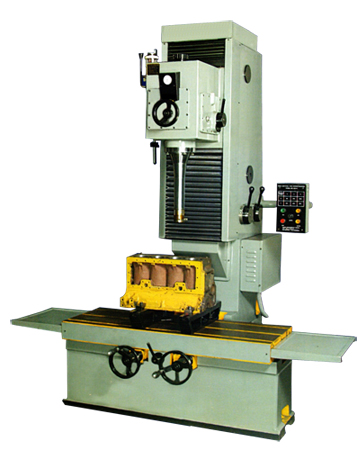

Vertical Fine Boring Machines

Working Capacity Model 550 Model 650/1600
Boring Capacity (Dia.) 60-200 mm, 60-250 mm,
Boring Depth Max. 350 mm 400 mm
Main Features
Spindle Travel Max. 450 mm 600mm
CI to Columns ways 250 mm 250 mm
Table Transverse Max. 900 mm 1315 mm
Speed
Spindle R.P.M. 100-150
200-300
400-600
50-90
150-160
300-540
Spindle Head Feed/Revolution 0.05
0.10
0.15
0.07
0.09
0.15
Note : Due to constant improvements the descriptions, dimensions and illustrations are not binding in detail.
