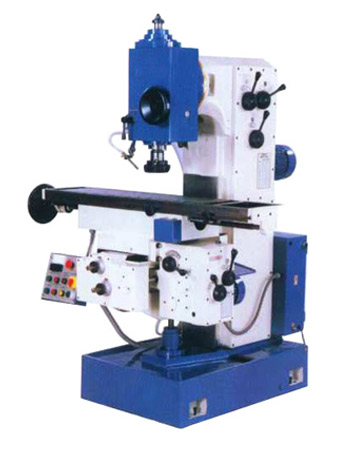

All Geared Vertical Milling Machines

Specifications of All Geared Vertical Milling Machine
Range V3 V4
Table Overall Size 1600 x 300 mm 2000 x 350 mm
Clamping Area 1200 x300 mm 600 x 350 mm
Long. Travel power/manual 975/1000 mm 1275/1300 mm
Cross / Vertical Traverse 300 mm 350 mm
Spindle Nose 425 mm 425 mm
Speed / range 18/42-1500 18/35-1800
Feed /range Long. & cross 18/16-800 18/16-800
Feed/ Range vertical 18/4-200 18/4-200
Rapid - Long ./Cross 3200 3200
Rapid- Vertical 800 800
Quill traverse in Vertical model only 100 100
Motor HP - Spindle/Feed 7.5/3 hp 10/3 hp
