Semi Automatic Bandsaw Machines

We are Authorised Dealer, Supplier, Service Provider of Semi Automatic Bandsaw Machines, and our set up is situated in Pune, Maharashtra, India.

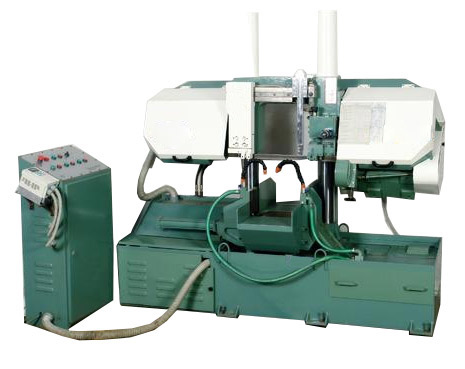

Bandsaw Machine Semi Automatic

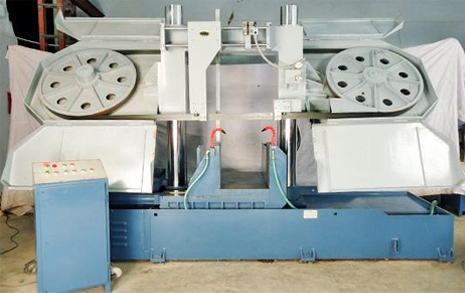

Bandsaw Machine Semi Automatic


Specification
BSA - 241 DC
BSA - 301 DC
BSA - 421 DC
BSA - 531 DC
BSA - 701 DC
BSA - 801 DC
BSA - 1001 DC
BSA - 1251 DC
BSA - 1500 DC
Cutting Capacity Round & Square (mm)
 240 310 421 531 701 801 1001 1251 1100 x 1500
Blade Dimensions (mm)
3760 x 27 x 0.9
4100 x 34 x 1.1
5450 x 41 x 1.3
6900 x 54 x 1.6
8800 x 67 x 1.6
10300 x 67 x 1.6
12300 x 67 x 1.6
13200 x 80 x 1.6
13200 x 80 x 1.6
Blade Linear Speed (mtr / min)
20 / 30 / 40 / 50 / 75
20 / 30 / 40 / 50 / 75
20 to 100 Step less
20 to 100 Step less
20 to 100 Step less
20 to 100 Step less
20 to 100 Step less
20 to 100 Step less
20 to 100 Step less
Power Req. (kw/h.p.) Saw Drive (440 V AC, 50 Hz, 3Phase) Hydraulic Drive Coolant Pump Wire Brush Motor
1.5 / 2.0 / 1400 RPM
0.75 / 1.0 / 1440 RPM
0.12 / 0.16 / 2800 RPM
0.18 / 0.25 / 1440 RPM
2.2 / 3.0 / 1440 RPM
0.75 / 1.0 / 1440 RPM
0.12 / 0.16 / 2800 RPM
0.18 / 0.25 / 1440 RPM
3.7 / 5.0 / 1440 RPM
0.75 / 1.0 / 1440 RPM
0.12 / 0.16 / 2800 RPM
0.18 / 0.25 / 1440 RPM
5.5 / 7.5 / 1440 RPM 0.75 / 1.0 / 1440 RPM 0.12 / 0.16 2800 RPM 0.18 / 0.25 / 1440 RPM
7.5 / 10 / 1440 RPM 1.1 / 1.5 / 1440 RPM 0.18 / 0.25/ 2800 RPM 0.18 / 0.25 / 1440 RPM
9.3 / 12.5 / 1440 RPM 1.1 / 1.5 / 1440 RPM 0.18 / 0.25 / 2800 RPM 0.18 / 0.25 / 1440 RPM
9.3 / 12.5 / 1440 RPM
1.1 / 1.5 / 1440 RPM
0.18 / 0.25 / 2800 RPM
0.18 / 0.25 / 1440 RPM
9.3 / 12.5 / 1440 RPM
1.1 / 1.5 / 1400 RPM
0.18 / 0.25 / 2800 RPM
0.18 / 0.25 / 1440 RPM
9.3 / 12.5 / 1440 RPM
1.1 / 1.5 / 1400 RPM
0.18 / 0.25 / 2800 RPM
0.18 / 0.25 / 1440 RPM
Hydraulic Tank Capacity (Ltr)
80
80
80
80
100
100
100
100
100
Coolant Tank Capacity (Ltr)
80
80
80
80
100
100
100
100
100
Apx. Dimensions (L x W x H) mtr.
2 x 1 x 1.3
2.3 x 1 x 1.3
2.5 x 1 x 1.7
3.3 x 1.4 x 2.3
3.3 x 1.4 x 2.3
3.3 x 1.4 x 2.3
5.0 x 1.9 x 3.5
5.0 x 2.0 x 4.0
6.0 x 2.0 x 4.0
Apx. Weight (kg)
1200
1500
1800
3500
5000
6000
12000
14000
15000

Stadard Features & Accessories
  •  Automatic work height control & fast approach
  •  Power driven Chip removal Wire Brush Assembly
  •  Hydraulic blade tension
  •  Split main vise for better gripping
  •  Idler wheel motion detector with blade stalling & breakage shut off
  •  Roller bearing / carbide wear pad blade guide system
  •  Bi metal bandsaw blade
  •  A.C. Drive for Infinitely variable speed control
Optional Accessories
  •  Bundle cutting attachment
  •  Chip Conveyor
  •  Job roller stand
  •  Wire brush
  •  Bi-metal bandsaw blade
  •  Variable vice pressure for thin walled job
  •  Centralized lubrication system
