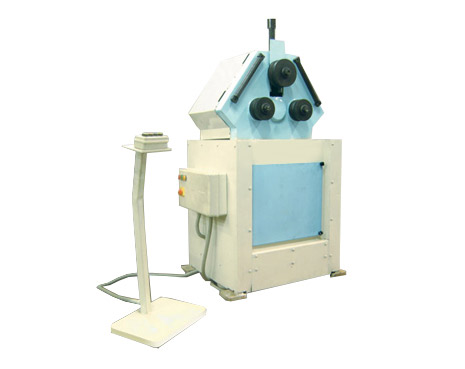

Section Bending Machine Mechanical

Description Model
SM-25 SB-40 SBH-40 SB-50 SBH-50 SBD-50 SBD-85 SBD-120 SBD-150
Pipe 25 x 2 35 x 3 35 x 3 45 x 4 45 x 4 45 x 4 75 x 6 100 x 6 140 x 5
Round Tube 32 x 1 40 x 2 40 x 2 50 x 2 50 x 2 50 x 2 85 x 3 120 x 3 160 x 3
Square Tube 30 x 1 35 x 2 35 x 2 40 x 2 40 x 2 40 x 2 70 x 3 90 x 5 100 x 5
Angle Iron 30 x 3 35 x 5 35 x 5 45 x 6 45 x 6 45 x 6 85 x 6 100 x 10 120 x 6
Solid Round 22 32 32 35 35 35 60 70 80
Solid Square 19 28 28 35 35 35 50 60 70
Flat Bar 50 x 6 50 x 10 50 x 10 60 x 10 60 x 10 60 x 10 80 x 20 100 x 20 100 x 25
T Shape Angle 30 x 3 35 x 5 35 x 5 45 x 6 45 x 6 45 x 6 85 x 6 100 x 10 120 x 6
C Channel 20 x 10 40 x 20 40 x 20 60 x 30 60 x 30 60 x 30 80 x 45 100 x 50 125 x 65
Upper Roll Dia. 100 130 130 150 150 180 250 315 390
Lower Roll Dia. 115 130 130 150 150 180 250 315 390
Roll Adjustment Manual Manual Hydraulic Manual Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
Pinch Single Single Single Single Single Double Double Double Double
Driven Rolls Two Two Two Two Two Two Two Three Three
Speed RPM N.A. 15 15 15 12 11 5 5 3
Power HP N.A. 2 2 3 3 3 5 10 15
Weight Kgs. 210 370 460 580 690 930 1620 2250 4550
