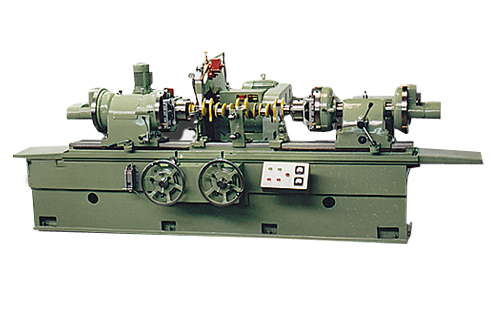

We are Authorised Dealer, Supplier, Service Provider of Crankshaft Grinding Machines, Crankshaft Grinders, and our set up is situated in Pune, Maharashtra, India.
Features
- International and ISI Standards for machine testing are followed.
- Castings properly seasoned for providing consistent accuracy during the life of machine.
- Wheel Head, Work Head and Tail Stock Spindles are made of special steel, hardened and ground for precision grinding as well as longer life.
- Imported angular contact bearings provided in Wheel Head, Tail Stock and Work Head.
- Gears are hob cut made of alloy steel.
- Automatic lubrication system is provided in Wheel Head Assembly for longer life of the Phosphorous Bronze bushes and Spindle.
- Taper table helps in easy flow of cutting oil.
| Specifications (SIZES) | (48") | (60") | (72") | (84") | (90") | (104") | (120") | (150") |
| Max. Distance between centres mm. | 1200 | 1500 | 1800 | 2100 | 2250 | 2600 | 3000 | 3750 |
| Max. Distance between chucks mm. | 1100 | 1400 | 1700 | 2000 | 2150 | 2500 | 2900 | 3600 |
| Maximum weight of Crankshaft Kg. | 60 | 80 | 100 | 125 | 150 | 200 | 300 | 500 |
| Swing over Table mm. | 400 | 500 | 500 | 650 | 650 | 650 | 650 | 650 |
| Maximum Stroke mm. | 175 | 225 | 225 | 280 | 280 | 280 | 280 | 280 |
| Work Head Spindle Speeds RPM | 27-41-61 | 27-41-61 | 27-41-61 | 27-41-61 | 27-41-61 | 18-27-41 | 18-27-41 | 18-27-41 |
| Grinding Wheel Speed RPM | 950 | 950 | 950 | 750 | 750 | 750 | 725 | 725 |
| Note : Due to constant improvements the descriptions, dimensions and illustrations are not binding in detail. | ||||||||
