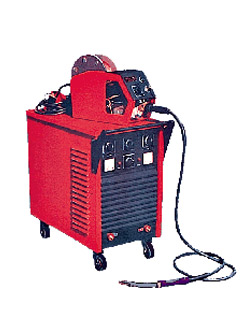

We are Authorised Dealer, Supplier, Service Provider of Inverter Based MIG Welding Machines, CO2 Welding Machines, and our set up is situated in Pune, Maharashtra, India.
- Choice of workhorse machines with proven economy.
- User friendly - 2 track / 4 track operation for zero defect GMA welding.
- Higher arc time increases productivity.
- Higher weld-metal deposition rates.
- Good and consistent weld quality with low hydrogen content.
- Can be use for welding a wide rage of metals like carbon steels, stainless, alluminum and its alloys, etc., provide appropriate consumable are used.
| POWER SOURCE |
JK-250 |
JK-400 |
|
| Static Characteristics |
Type |
Constant Potential |
Constant Potential |
| Maximum Welding Current |
Amps. |
250 |
400 |
| Maximum welding Current / Load Voltage |
- |
- |
- |
| (a) 60% Duty Cycle |
Amps. / Volts |
250 / 26.5 |
400 / 34 |
| (b) 100% Duty Cycle |
Amps. / Volts |
195 / 23.5 |
310/ 29.4 |
| Open Ckt. Voltage |
Volts |
16 - 36 |
18 - 54 |
| No. Of Voltage Steps |
No. |
32 |
32 |
| Input Supply Voltage |
Volts |
415 |
415 |
| Phase |
Nos. |
3 |
3 |
| Frequency |
Hz |
50 |
50 |
| Rating at 60% Duty cycle |
KVA |
10 |
20 |
| Maximum Input Current at Rated Output with 415 V supply |
Amps |
14 |
28 |
| Type of cooling |
.......................Forced Air Cooled.............................. |
||
| Class of Insulation |
-vubrain |
Class F |
Class F |
| Dimension (Approximate) Length X Width X height |
MM |
...........................800x445x880............................ |
|
| - | |||
| Wirefeeder |
vubrain |
JK-250 |
JK-400 |
| Wire Diameter Mild Steel |
MM |
0.8, 1.2 & 1.6 |
0.8, 1.2 & 1.6 |
| Stainless Steel |
MM |
1.2 & 1.6 |
1.2 & 1.6 |
| Aluminum |
MM |
1.2 & 1.6 |
1.2 & 1.6 |
| Wire Drive Motor |
Type |
Permanent Magnet DC Motor- |
|
| Drive System |
Type |
2-Roll Quick Release |
4-Roll Quick Release |
| Wirefeed Speed |
M/Min |
1.2 - 18 |
1.2 - 18 |
| Dimension (Approximate) Length X Width X Height |
MM |
...........................430x225x310............................ |
|
