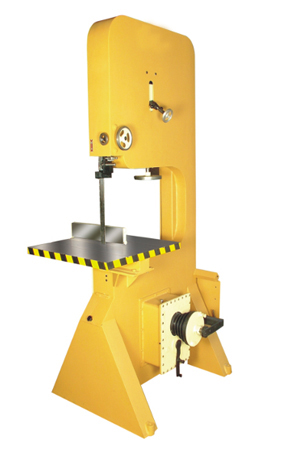

Vertical Bandsaw Cutting Machines

Vertical Bandsaw Cutting Machines
Single Speed

MODEL NO. MB / 14 MB / 18 MB / 24 MB / 30
Maximum Throat Capacity 13.5" 17" 23" 29"
Cutting Capacity 6.5" x 13" 8" x 17" 12" x 23" 15" x 29"
Diameter of Saw wheels 14" 18" 24" 30"
Speed of Wheels for Cutting Woods 800 R.P.M. 750 R. P. M. 700 R. P. M. 650 R. P. M.
Size of the Tilting Table (45) 15" x 15" 18" x 18" 24" x 24" 30" x 30"
Blade Size 1" x 111" 1.5" x 135" 1.5" x 174" 2" x 210"
Power Required
R. P. M.
2. H.P.
1440
2. H.P.
1440
5. H.P.
1440
7.5. H.P.
1440
V Belt Size B-51"-1 B-54"-1 B-68"-2 B-84"-3
Machine Size 32"x21"x64" 39"x25"x72 48"x30"x82" 60"x40"x98"

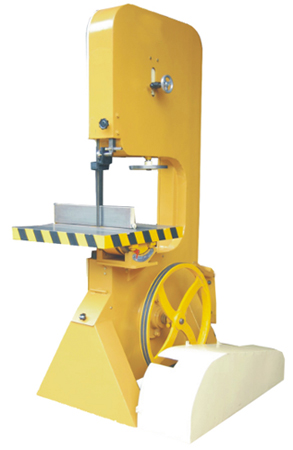

Vertical Bandsaw Cutting Machines
4 Speed

MODEL No. MWM / 14 MWM / 18 MWM / 24 MWM / 30
Maximum Throat Capacity 13.5" 17" 23" 29"
Cutting Capacity 6.5"x13" 8"x17" 12"x23" 15"x29"
Diameter of Saw Wheels 14" 18" 24" 30"
Speed of Wheels for Cutting Metal 800 R.P.M. 750 R.P.M. 700 R.P.M. 650 R.P.M.
Speed of Wheels for Cutting Woods 75, 115, 150
225 F.P.M
85, 115, 170
225 F.P.M
75, 115, 150
225 F.P.M
75, 115, 150
225 F.P.M
Size of the Tilting Table (45) 15"x15" 18"x18" 24"x24" 30"x30"
Blade Size 1"x111" 1.5"x135" 1.5"x174" 2"x210"
Power Required R.P.M. 2H.P / 1440 2.H.P. / 1440 5. H.P. / 1440 7. H.P. / 1440
V Belt Size B-52"-1 B-60"-1 B-68"-1 C-1
Machine Size 32"x28"x64" 39"x35"x72" 48"x38"x82" 60"x50"x98"
