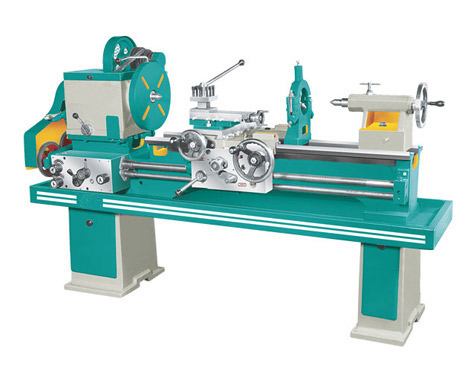

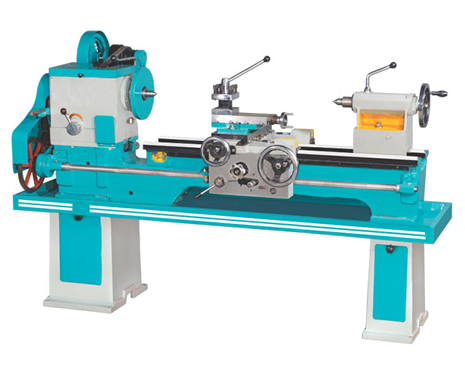

Medium Duty Lathe Machines

Medium Duty Lathe Machines
Medium Duty Lathe Machines
Extra Facility
  •  Spindle bore 80 mm
  •  Full norton gear box.
  •  Double Screw with Full Norton Gear Box.
  •   Height of Center 10"
Special Features
  •  Bed : Bed and all Casting Parts are manufactured in our Foundry. The Bed is made from A graded Casting 2V and 2 Flat type. Hardened and Ground Bed ways.
  •  Head Stock : Head Stock Body is of latest specially design induction hardened and Ground spindle of special alloy steel. All centrifugal running parts are well balanced.
  •  Apron and Norton : A four walled closed type with oil bath apron and norton having a best quality gears. Sliding and Surfacing feeds can be engaged by tightening a star knobs and engaging lever at appropriate position.
  •   Tail Stock : Hexagonal shapped body. Tail Stock spindle having external and internal grinding with MT-4 Internal Tapper is provided. It can be off set for tapper turning.
  •   Model Nos. as BM-4.5 and BM-6


SPECIFICATION INCH MM INCH MM
Length of Bed 41/2' (1375 mm) 6' (1825 mm)
Bed Width 11″ 279 11″ 279
Height of Center Over Flat Bed Ways 9″ 226 9″ 226
Maximum Swing over bed 17″ 432 17″ 432
Maximum Swing over Cross Slide 11″ 280 11″ 280
Maximum Swing in Gap 26″ 660 26″ 660
Admit Between Centre 18″ 457 36″ 915
Spindle Nose 6 TPI 6 TPI
Number of Spindle Speed 6 Range 6 Range
Diameter of Hole Through Spindle 2 1/16″ 52 2 1/16″ 52
Inch Range Threads 4 to 60 TPI 4 to 60 TPI
Metric Range Threads 0.5 to 7.5 mm 0.5 to 7.5 mm
Lead Srew Dia. & Pitch 1.1/4″ 31.75 1.1/4″ 31.75
Feed Shaft Dia. 7/8″ 22.22 7/8″ 22.22
Tail Stock Spindle Dia. 1.3/4 44.45 1.3/4 44.45
Tail Stock Spindle Taper Bore MT-4 MT-4
Tail Stock Spindle Travel 5.1 130 5.1 130
Power Required 2 H.P. 1440 RPM 2 H.P. 1440 RPM
Approx Weight 625 Kgs. 750 Kgs.
