CNC Synchro Press Brake Machines

We are Authorised Dealer, Supplier, Service Provider of CNC Synchro Press Brake Machines, and our set up is situated in Pune, Maharashtra, India.

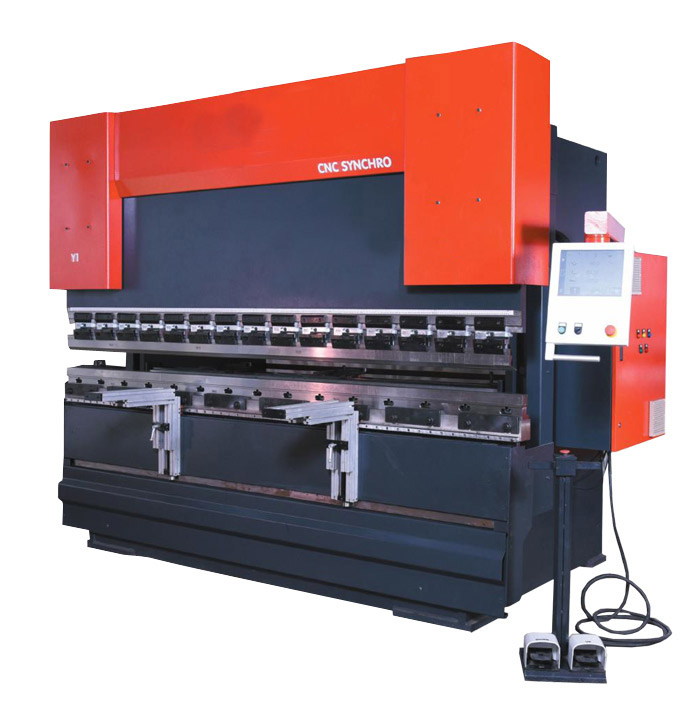

CNC Synchro Press Brake

Model		1	2	3	4	5	6	7	8	9	10	11	12	13
Bending Force	Tonnage	80	100	120	150	160	200	200	200	200	250	250	250	250
Bending Length X THK.	MM	2500 x 4	3100 x 4	3100 x 5	3100 x 6	4000 x 5	3100 x 8	4000 x 6	5000 x 5	6000 x 4	3100 x 10	4000 x 8	5000 x 6	6000 x 5
Distance Between Housing	MM	2050	2550	2550	2550	3400	2550	3400	4000	5000	2550	3400	4000	5000
Y Rapid Speed	MM / SEC	100	100	100	100	100	70	70	70	70	70	70	70	70
Y Working Speed	MM / SEC	10	10	10	10	8	8	8	8	8	8	8	8	8
Y Return Speed	MM / SEC	60	60	60	70	60	50	50	50	50	50	50	50	50
Day Light	MM	375	375	375	400	400	475	475	475	475	500	500	500	500
Table Width	MM	90	90	90	90	90	90	90	90	90	90	120	120	120
Table Height	MM	900	900	965	965	95	965	965	965	965	965	965	965	965
Stroke	MM	150	150	150	175	175	225	225	225	225	250	250	250	250
Throat Depth	MM	300	300	300	300	300	300	300	300	300	300	300	300	300
Front Sheet Supprot	Amount	2	2	2	2	3	2	3	3	4	2	3	3	4
Back Gauge Finger Block	Amount	2	2	2	2	2	2	2	2	4	2	3	3	4
Travel in X Axis	MM	700	700	700	700	700	700	700	700	700	700	700	700	700
Travel in R Axis	MM (+/-)	100	100	100	100	100	100	100	100	100	100	100	100	100
Motor Power	HP / KW	7.5 / 5.5	10/7.5	10/7.5	15/11.2	15/11.2	20/15	20/15	20/15	20/15	25/18.75	25/18.75	25/18.75	25/18.75
Oil Tank Capacity	LTR	450	450	500	500	500	500	550	600	600	600	600	600	600
Length (L)	MM	3500	3700	3700	3750	4750	3800	4800	5800	6900	3800	3800	3800	6800
Width (W)	MM	1300	1350	1500	1500	1500	1800	1800	1800	1850	1800	4850	5850	1850
Height (H)	MM	2450	2450	2600	2700	2700	2700	2700	2700	2790	2700	2800	2800	2800

Model		14	15	16	17	18	19	20	21	22	23	24	25	26
Bending Force	Tonnage	325	325	325	325	425	425	425	600	600	600	800	800	800
Bending Length X THK.	MM	3100 x 13	4000 x 10	5000 x 8	6000 x 6	4000 x 13	5000 x 10	6000 x 8	5000 x 15	6000 x 12.5	8000 x 9	5000 x 20	6000 x 16	8000 x 12.5
Distance Between Housing	MM	2550	3400	4000	5000	3400	4000	5000	4000	5000	7000	4000	5000	7000
Y Rapid Speed	MM / SEC	60	60	60	60	50	50	50	50	50	50	50	50	50
Y Working Speed	MM / SEC	8	8	8	8	7	7	7	6	6	6	5	5	5
Y Return Speed	MM / SEC	50	50	50	50	50	50	50	40	4	40	40	40	40
Day Light	MM	500	500	500	500	550	500	500	625	625	625	625	625	625
Table Width	MM	150	150	1500	150	200	200	1200	250	250	250	250	250	250
Table Height	MM	965	1000	1000	1000	1100	1100	1100	1200	250	250	250	250	250
Stroke	MM	250	250	250	250	300	300	300	325	325	325	325	325	325
Throat Depth	MM	300	300	300	300	300	300	300	300	300	300	300	300	300
Front Sheet Supprot	Amount	2	3	3	4	2	3	3	4	3	4	4	4	4
Back Gauge Finger Block	Amount	2	3	3	3	4	33	4	3	4	4	4	4	4
Travel in X Axis	MM	120	120	120	120	120	120	120	120	120	120	120	120	120
Travel in R Axis	MM (+/-)	700	700	700	700	700	700	700	700	700	700	700	700	700
Motor Power	HP / KW	40/30	40/30	40/30	40/30	50/37.5	50/37.5	50/37.5	60/45	60/45	60/45	60/45	60/45	60/45
Oil Tank Capacity	LTR	650	650	650	650	700	700	700	800	800	800	1000	1000	1000
Length (L)	MM	3800	4800	5800	6800	4850	5550	6850	5900	6900	9000	6000	7000	7000
Width (W)	MM	1850	1850	1850	2900	2100	2100	2200	2200	2300	2300	2400	2400	2400
Height (H)	MM	2900	2900	2900	2900	3000	3000	3000	3200	3200	3200	3400	3400	3400
