We are Authorised Dealer, Supplier, Service Provider of Ram Turret Type Milling Machines, Ram Turret Milling Machines, and our set up is situated in Pune, Maharashtra, India.

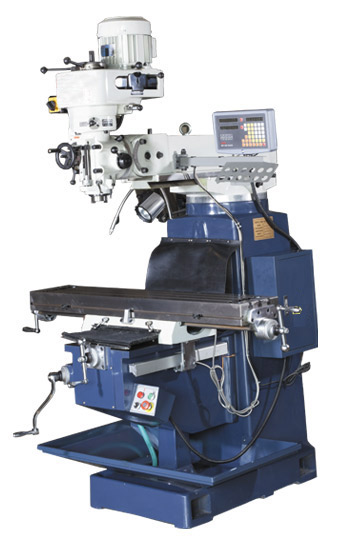

| Specifications | ||
| Model | 4KS | |
| Total Size | mm | 1270x254 |
| T Slot (No./width) | mm | 3/16 |
| Travels X/Y/Z | mm | 850/400/480 |
| Ram Travels | mm | 590 |
| Ram Travels | mm | 590 |
| Spindle taper | ISO | 30 |
| Quill Travel | mm | 127 |
| Distance Spindle to Table | mm | 430 |
| Distance Spindle to Column | mm | 700 |
| Spindle Speeds (Low) | rpm | 66 to 2270 |
| Spindle Speeds (High) | rpm | 130 to 4540 |
| No. of Power Feeds | 3 | |
| Power down feed (per rev of) | mm/Rev | 0.04/0.08/0.05 |
| PHead Movement (L to R) | Deg. | 90o |
| Head Tilt Front & Back | Deg. | 45o |
| Max. Table Load Capacity | kgs. | 330 |
| Motor | HP. | 3 |
| Dimensions (LxWxH) | mm | 1670x1690x2090 |
Salient Features
- Machine Body Of MEHANITE "M" Cast Iron Construction
- Induction Hardened & Ground X & Y Slide Ways
- Hardened & Ground Table Top
- Turcite B Coated on X & Y Slide Ways
- Spindle Hardened & Ground
- Pre Loaded Double Nuts ensures extremely smooth working, high precision working & minimize minimum backlash
- Built in Coolant Tank
Standard Accessories
- 2 Axis DRO for X & Y Axis
- Control Panel
- Base Splash Guard
- 150mm Swivel Base Vice
- ISO 30 Adaptor with set of Collents
- 16mm Keyless Drill Chuck
- Micro Boring Head with Shank
- 52 Pcs Clamping kit
- Halogen Machine Lamp
- Centralised lubrication systems
- Set of Bellows
- Tool kit with Box
- Instruction Manual
Optional Accessories
- Super power Feed Box for X, Y & Z axis
- Manual Edge Finder

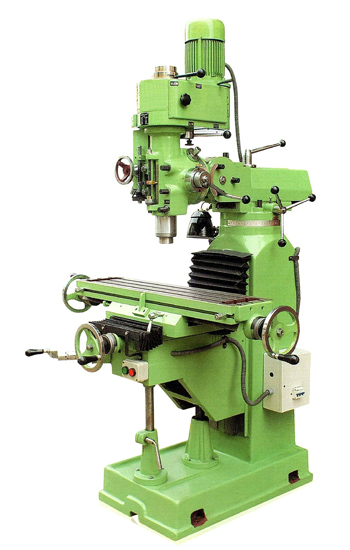

Ram Turrent Milling machine with auto feed to quill, Head tilt 45o vertical up & down & 90o Horizontal left & right

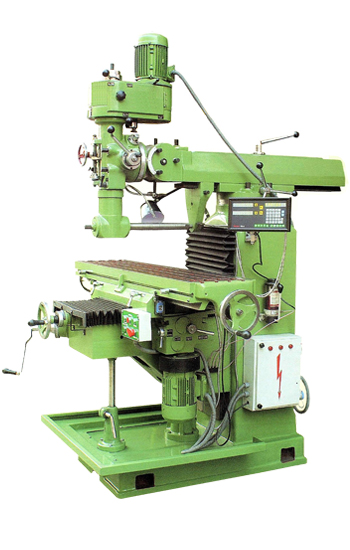

Ram Turrent Milling machine with auto feed to quill & Auto fedd to working table. Fitted with horizontal attachment & Dro 2 Axis

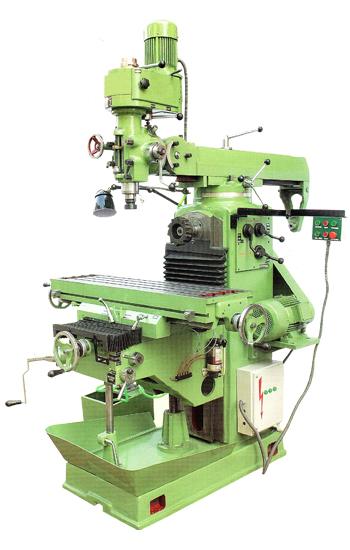

Vertical Ram Turrent & Universal Milling Machine with Auto Feed to Quill & Auto Feed to X-Y-Z Axis
| Description | Model 1 | Model 2 | Model 3 | Model 4 |
| Technical Specifications of Ram Turrent & Universal Milling Machine | 9" x 4" 220 x 975mm |
10.5" x 48" 260 x 1200 mm |
13" x 60" 325 x 1470mm |
15" x 70" 365 x 1700mm |
| Table size of Vertical & Horizontal Drive Milling Machine | 220 x 975mm | 260 x 1200mm | 325 x 1470mm | 365 x 1700mm |
| Longitudinal Travel | 535 | 675 | 810 | 1000 |
| Vertical Travel | 345 | 450 | 520 | 525 |
| Cross Travel | 245 | 340 | 368 | 450 |
| Table to Spindle | 0 Min. | 0 Min. | 0 Min. | 0 Min. |
| Head Tilt 45 Up & Down | --do-- | --do-- | --do-- | --do-- |
| Head Move 90 Left & Right Horizontal | --do-- | --do-- | --do-- | --do-- |
| Quill Spindle Diameter | 90mm Hardened & Grinded |
90mm Hardened & Grinded |
90mm Hardened & Grinded |
90mm Hardened & Grinded |
| Head & Ram Rotate Parellel on body | 360 | 360 | 360 | 360 |
| Quill Spindle Travel | 125mm | 125mm | 125mm | 125mm |
| Ram Travel | 250 | 300 | 440 | 440 |
| T-Slot | 3-12mm | 3-16mm | 4-16mm | 4-16mm |
| Motor | 1 H. P. | 2 H. P. | 2 H. P. | 2 H. P. |
| No. of Speeds | 8 Min. 75 RPM Max. 3000 RPM |
8 Min. 75 RPM Max. 3000 RPM |
8 Min. 75 RPM Max. 3000 RPM |
8 Min. 75 RPM Max. 3000 RPM |
| Max. Weight of Work Piece | 250 Kg. | 750 Kg. | 1000 Kg. | 1500 Kg. |
| Net Weight of Machine | 1050 Kg. | 1550 Kg. | 1850 Kg. | 2400 Kg. |
| Overall Height, Width & Length | 1800 x 1200 x 1300 | 2100 x 1500 x 1800 | 2200 x 1764 x 2000 | 2200 x 2050 x 2100 |
