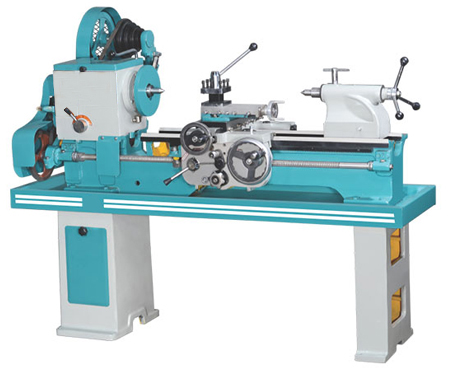

Light Duty Lathe Machines

Standard Accessories
  •   Change Gear Set (Inch & mm)
  •   Chuck Plate
  •   Centre Adaptor
  •   Dead Centre (2 No.)
  •   Main Drive ā€˜Vā€™ Belt
  •   Motor Pully
Extra Accessories
  •   Steady Rest
  •   Follow Rest
  •   Face Plate
  •   Norton Gear Box
  •   Taper Turning Attachment
  •   Electric Motor
  •   Rear Tool Post
  •   Coolant Pump
  •   Belt & R.F. Switch

SPECIFICATIONS BL-4.6 BL-6
BED
Bed Length 1375 mm / 4'-6" 1825mm / 6'
Bed Width 241 mm / 9.5" 241 mm / 9.5"
CAPACITY
Height Of Center 165mm / 6.5" 165mm / 6.5"
Swing Over Bed 355 mm / 14" 355 mm / 14"
Swing Over Cross Slide 180 mm / 7" 180 mm / 7"
Admit Between Center 635 mm / 13" 1090 mm / 43"
MAIN SPINDLE
Spindle Thread / Dia 8 TPI-60 MM 8 TPI-60 MM
Spindle Bore 40 mm Dia / 1.625" 40 mm Dia / 1.625"
TAIL STOCK
Quill Dia 38 mm / 1.5" 38 mm / 1.5"
THREADS
Lead Screw 25.4 mm Dia X 4 TPI 25.4 mm Dia X 4 TPI
Metric Thread 13 / 1 mm to 6 mm 13 / 1 mm to 6 mm
Inch Thread 19 / 2 TPI to 24 TPI 19 / 2 TPI to 24 TPI
SPEEDS
No. Of Spindle Speed 4 + 4 = 8 4 + 4 = 8
RPM ( Min / Max ) 35 / 825 35 / 825
