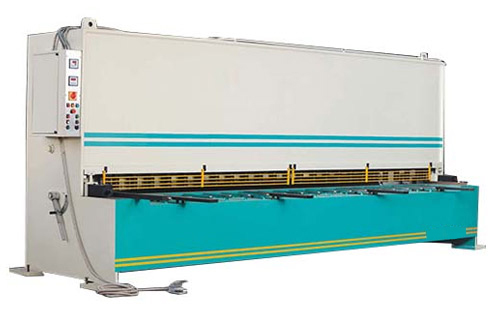

Hydraulic Shearing


Model cutting Length (M.M.) Normal Rake Angle (M.S) Maximum Rake Angle (M.S) Normal Rake Angle (S.S) Maximum Rake Angle (S.S) Variable Rake Angle Strokesh/ Minute Atmin. & Max. Rake angle Holddowns power H.P. Packing Dimension M.M (LXWXH) approx. weight kgs.
HVR - 315 1500 3 4 2 3 0.5 – 2’ 26/13 9 5 2250X 1850 X 1950 2000
HVR - 320 2000 3 4 2 3 0.5 – 2’ 24/12 11 5 2750X 1850 X 1950 2500
HVR - 325 2500 3 4 2 3 0.5 – 2’ 22/11 13 5 3200X 1850 X 1950 3000
HVR - 330 3000 3 4 2 3 0.5 – 2’ 20/10 17 7.5 3700X 1850 X 1950 3500
HVR - 415 1500 4 6 3 4 0.5 – 3’ 30/15 9 5 2250X 1850 X 2050 2500
HVR - 420 2000 4 6 3 4 0.5 – 3’ 27/12 11 5 2750X 1850 X 2050 3000
HVR - 425 2500 4 6 3 4 0.5 – 3’ 26/10 13 7.5 3300X 2250 X 2400 3300
HVR - 430 3000 4 6 3 4 0.5 – 3’ 25/10 17 7.5 3700X 2250 X 2400 4000
HVR - 440 4000 4 6 3 4 0.5 – 3’ 20/8 21 7.5 4700X 2250 X 2400 5000
HVR - 450 5000 4 6 3 4 0.5 – 3’ 15/6 25 10 5700X 1900 X 2100 7000
HVR - 460 6000 4 6 3 4 0.5 – 3’ 14/5 30 12.5 6700X 1400 X 2100 10000
HVR - 615 1500 6 8 4 6 0.5 – 3’ 20/10 9 7.5 2250X 1900 X 2100 3500
HVR - 620 2000 6 8 4 6 0.5 – 3’ 20/10 11 7.5 1750X 1900 X 2100 4000
HVR - 625 2500 6 8 4 6 0.5 – 3’ 25/11 13 10 3300X 2250 X 2500 4300
HVR - 630 3000 6 8 4 6 0.5 – 3’ 23/9 17 10 3800X 2250 X 2500 5500
HVR - 640 4000 6 8 4 6 0.5 – 3’ 20/8 21 12.5 4800X 2500 X 2500 6500
HVR - 650 5000 6 8 4 6 0.5 – 3’ 16/7 25 15 5800X 2500 X 2700 9000
HVR - 660 6000 6 8 4 6 0.5 – 3’ 12/5 30 20 6800X 2700 X 2700 12000
HVR - 815 1500 8 10 6 8 0.5 – 3’ 21/10 9 10 2250X 2050 X 2200 4000
HVR - 820 2000 8 10 6 8 0.5 – 3’ 17/8 11 10 2750X 2050 X 2200 4500
HVR - 825 2500 8 10 6 8 0.5 – 3’ 19/8 13 12.5 3300X 2350 X 2600 5000
HVR - 830 3000 8 10 6 8 0.5 – 3’ 17/7 17 12.5 3800X 2350 X 2600 6500
HVR - 840 4000 8 10 6 8 0.5 – 3’ 15/6 21 20 4800X 2350 X 2600 8000
HVR - 850 5000 8 10 6 8 0.5 – 3’ 14/5 25 20 5800X 2500 X 2800 11000
HVR - 860 6000 8 10 6 8 0.5 – 3’ 12/5 30 25 6800X 2700 X 3000 14000
HVR -1015 1500 10 13 8 10 0.5 – 3’ 19/10 9 12.5 2250X 2050 X 2300 4500
HVR -1020 2000 10 13 8 10 0.5 – 3’ 18/8 11 12.5 2750X 2050 X 2300 5000
HVR -1025 2500 10 13 8 10 0.5 – 3’ 16/7 13 15 3300X 2500 X 2800 6000
HVR -1030 3000 10 13 8 10 0.5 – 3’ 15/7 17 15 3800X 2500 X 2800 7500
HVR -1040 4000 10 13 8 10 0.5 – 3’ 13/5 21 25 4800X 2600 X 3000 9500
HVR -1050 5000 10 13 8 10 0.5 – 3’ 12/5 25 25 5800X 2800 X 3000 13000
HVR -1060 6000 10 13 8 10 0.5 – 3’ 10/4 30 30 6800X 3000 X 3200 17000
HVR -1315 1500 13 16 10 13 1 – 3’ 15/7 9 15 2300X 2200 X 2500 6000
HVR -1320 2000 13 16 10 13 1 – 3’ 13/6 11 15 2800X 2200 X 2500 7000
HVR -1325 2000 13 16 10 13 1 – 3’ 13/6 11 15 2800X 2200 X 2500 7000
HVR -1325 2500 13 16 10 13 1 – 3’ 13/5 13 25 3350X 2600 X 2800 8000
HVR -1330 3000 13 16 10 13 1 – 3’ 12/5 17 25 3850X 2600 X 2800 11000
HVR -1340 4000 13 16 10 13 1 – 3’ 11/5 21 25 4850X 2600 X 2800 15000
HVR -1350 5000 13 16 10 13 1 – 3’ 10/4 25 30 5850X 2800 X 3000 20000
HVR -1360 6000 13 16 10 13 1 – 3’ 10/4 30 35 6850X 3000 X 3200 28000
HVR -1615 1500 16 20 13 16 1 – 3’ 18/8 9 25 2350X 2200 X 2600 7000
HVR -1620 2000 16 20 13 16 1 – 3’ 16/8 11 30 2850X 2200 X 2600 8000
HVR -1625 2500 16 20 13 16 1 – 3’ 13/6 13 30 3350X 2600 X 2900 9000
HVR -1630 3000 16 20 13 16 1 – 3’ 1/6 17 30 3900X 2600 X 2900 13000
HVR -1640 4000 16 20 13 16 1 – 3’ 12/5 21 30 4900X 2800 X 3000 18000
HVR -1650 5000 16 20 13 16 1 – 3’ 10/4 25 35 5900X 3000 X 3200 24000
HVR -1660 6000 16 20 13 16 1 – 3’ 9/4 30 40 6900X 3200 X 3400 36000
HVR -2015 1500 20 25 16 20 1 – 3’ 9/6 9 30 2350X 2500 X 2600 8000
HVR -2020 2000 20 25 16 20 1 – 3’ 9/6 11 40 3900X 2500 X 2600 9000
HVR -2025 2500 20 25 16 20 1 – 3’ 8/5 13 40 3500X 2750 X 3000 11000
HVR -2030 3000 20 25 16 20 1 – 3’ 7/4 17 40 4000X 2750 X 3000 15000
HVR -2040 4000 20 25 16 20 1 – 3’ 7/4 21 50 5000X 2950 X 3200 22000
HVR -2050 5000 20 25 16 20 1 – 3’ 6/3 25 60 6000X 3100 X 3400 30000
HVR -2060 6000 20 25 16 20 1 – 3’ 6/3 30 40 7000X 3300 X 3600 42000
HVR -2515 1500 25 30 20 25 1 – 3’ 7/4 9 50 2400X 2800 X 2800 10000
HVR -2020 2000 25 30 20 25 1 – 3’ 8/5 11 50 3100X 2800 X 2800 12000
HVR -2025 2500 25 30 20 25 1 – 3’ 7/4 13 60 3600X 2900 X 3000 15000
HVR -2030 3000 25 30 20 25 1 – 3’ 7/4 17 60 4100X 3000 X 3200 22000
HVR -2040 4000 25 30 20 25 1 – 3’ 6/3 21 75 5100X 3100 X 3200 30000
HVR -2050 5000 25 30 20 25 1 – 3’ 7/4 25 75 6100X 3200 X 3500 36000
HVR -2060 6000 25 30 20 25 1 – 3’ 6/3 30 75 6100X 3400 X 3700 45000
