Four Pillar Type Hydraulic Press

We are Authorised Dealer, Supplier, Service Provider of Hydraulic Press H Type Four Pillar Type, Four Pillar Type Hydraulic Press and our set up is situated in Pune, Maharashtra, India.

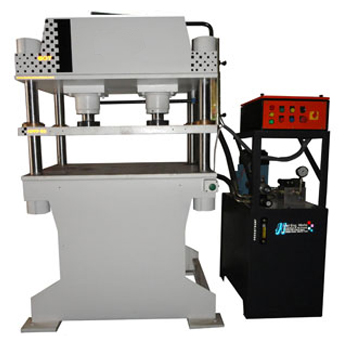

Hydraulic Press H Type Four Pillar Type

4-nos Hard Chrome Pillars Type Presses are designed to provide maximum flexibility for different blanking, broaching and other applications. The change in the speed can be preset to take place at any point of the stroke with the help of limit switches / proximity switches / liner encoders / potentiometer. Maximum frame rigidity is achieved through computer aided frame design and finite element analysis. These presses can be custom designed to suit specific requirements of the customers.

  •   4-Nos Hard Chrome Pillars Type Presses
  •   4-Nos Hard Chrome
  •   Pillars Type Presses
  •   Hydraulic Press 4 Pillars Type With Load Cell
  •   Hydraulic Press 4 Pillars Type

Application
  •   Blanking & Broaching
  •   Coining
  •   Die Tryout
  •   Deep Drawing
  •   Main Drive ‘V’ Belt
  •   Forming & Embossing
  •   Hobbing
  •   Laminating
  •   Assembly
  •   Riveting
  •   Staking
  •   Straightening
  •   Testing
  •   Trimmings
Salient Features
  •   Advantages of Hydraulic Presses over Mechanical Presses
  •   Characteristics Hydraulic Presses Mechanical Presses
  •   Force Relatively constant (does not depend upon slide position) Variable (depends upon slide position)
  •   Stroke Length Capable of long stroke 100″ (2540 mm) or more Very limited
  •   Capacity 50,000 tones or more About 600 tons maximum practical
  •   Wear & Tear Very Less Very High
  •   Maintenance Cost Very Less Very High
  •   Rejection Chemicals Very Few Very High
  •   Final Product Quality Best Good

TON TABLE SIZE RAM TO BED STROKE H.P. ROD SIZE
15 400*250 275 200 2 55
25 400*300 300 200 2 65
40 450*300 350 250 2 85
60 500*350 400 250 3 100
80 500*350 450 300 3 105
100 600*450 450 300 3 125
150 600*600 500 350 5 150
200 650*600 600 400 5 200
250 700*600 600 400 7.5 200
300 750*650 600 400 10 250
350 750*650 650 400 10 250
400 800*750 650 400 15 300
500 800*750 800 450 15 300
