Mechanical Plate Bending Machines

We are Authorised Dealer, Supplier, Service Provider of Mechanical Plate Bending Machines, and our set up is situated in Pune, Maharashtra, India.

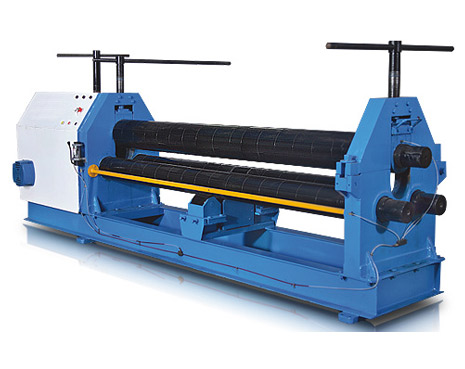

Plate Bending Machine Mechanical

Standard Features
  •  3 Roll Pyramid Type Design
  •  The Robust Welded Structure is Made of Mild Steel Plates
  •  Top Roll Adjustment is Manually Set by Scre Jack
  •  High Quality Durable Worm Gear Box
  •  Bending Rolls are Made of Alloy Steel
  •  Bottom Rolls are PowerDriven
  •  Manual End Dropper Arrangement

Standard Accessories
  •  Main Motor Drive
  •  Manual Centralized Lubrication System
  •  2 Nos. Screw Drive Road
  •  Nut Spanner
  •  Ruler for Top Roll Movement & Level
  •  Electric Control Panel with Movable Operation Console (Not Included in Some Basic Models)

    • Optional Accessories
    •  Automatic Lubrication system
    •  Conical Bending Arrangement
    •  Extended Roll Shafts for Profile Bending
    •  Hardened Roll
    •  Hydraulic Jack & Power Pack for Top Roll


Model No. Plate Width Plate Thickness Top Roll Bottom Roll Minimum Bending Diameter Motor Power H. P.
PR 123 1250 3 100 90 250 2
PR 153 1500 3 115 100 290 3
PR 203 2000 3 130 105 325 3
PR 253 2500 3 150 125 375 5
PR 303 3000 3 175 150 450 7.5
PR 126 1250 6 125 105 315 3
PR 156 1500 6 140 115 350 5
PR 206 2000 6 160 135 400 5
PR 256 2500 6 175 150 450 7.5
PR 306 3000 6 200 170 500 10
PR 1210 1250 10 150 125 375 5
PR 1510 1500 10 160 135 400 7.5
PR 2010 2000 10 185 150 450 7.5
PR 2510 2500 10 200 170 500 10
PR 3010 3000 10 240 200 600 15
PR 1212 1250 12 175 140 450 7.5
PR 1512 1500 12 180 150 450 7.5
PR 2012 2000 12 205 160 525 10
PR 2512 2500 12 230 180 575 15
PR 3012 3000 12 260 220 650 20
