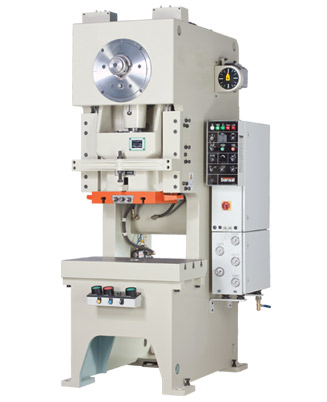

Cross Shaft C - Type

We are Authorised Dealer, Supplier, Service Provider of Cross Shaft C - Type, and our set up is situated in Pune, Maharashtra, India.


Cross Shaft

Special Features
  • Rigid frame with less deflection
  • High torque transmission gears and rigid crank ensure long life and accuracy
  • High torque pneumatically operated single disc combined clutch & brake unit
  • Gear transmission runs in oil bath
  • All functions designed user friendly and electrical control system enables the accessories to attacheasily
  • Accuracy meets JIS grade - I

Description MODEL
C-Type35 C-Type45 C-Type60 C-Type80 C-Type110 C-Type160 C-Type200 C-Type250
Type SG HG NG SG HG NG SG HG NG SG HG SG HG SG HG SG HG SG HG
Capacity tf 35 Tonne 45 Tonne 60 Tonne 80 Tonne 110 Tonne 160 Tonne 200 Tonne 250 Tonne
Stroke Length Fixed (K) mm 80 40 40 90 50 40 120 50 40 140 60 160 60 200 80 220 80 250 100
Variable (K) mm 8-80 - - 8-90 - - 8-100 - - 8-100 - 8-125 - 8-160 - - - - -
Speed Fixed SPM 80 100 130 70 90 130 60 90 130 60 90 50 80 40 60 35 60 30 50
Variable - 70-120 80-160 - 70-110 80-160 - 70-110 80-160 - 70-110 - 70-110 - 40-80 - 40-80 - 30-70
Rating Point mm 3.2 2.5 2.3 3.2 2.6 2.3 4.0 2.6 2.3 4.5 3.0 5.0 3.0 6.0 4.0 6.0 4.0 6.0 4.0
Bolster Area (MXN) mm 780 x 400 840 x 450 900 x 520 1050 x 600 1150 x 680 1250 x 760 1400 x 840 450 x 900
Bolster Thickness (S) mm 85 110 120 130 140 165 180 180
Die Height (DH) mm 250 270 300 330 360 450 500 500
Slide Area (PXQ) mm 380 x 300 450 x 350 480 x 400 560 x 460 650 x 520 720 x 580 860 x 680 900 x 800
Slide Adjustment mm 50 60 75 75 90 10 120 120
Throad Depth (R) mm 210 235 270 310 350 390 435 465
Upright Distance (L) mm 490 530 570 600 670 770 920 940
Main Motor Fixed HPXP 3 x 4 3 x 4 3 x 6 5 x 4 5 x 4 5 x 6 7.5 x 4 7.5 x 4 7.5 x 6 10 x 4 10 x 4 10 x 4 10 x 4 15 x 4 15 x 4 20 x 4 20 x 4 25 x 4 25 x 4
Variable - 5 x 4 5 x 4 - 7.5 x 4 7.5 x 4 - 10 x 4 10 x 4 - 10 x 4 - 15 x 4 - 20 x 4 - 25 x 4 - 30 x 4
Floor to Bolster (J) mm 80 800 900 900 900 900 1000 1000
Foot Size (CXD) mm 830 x 1150 890 x 1290 950 x 1400 1050 x 1480 1160 x 1680 1300 x 1985 1480 x 2140 1550 x 2390
Anchor Bolt Size (AxB) mm 730 x 950 790 x 1095 850 x 1150 950 x 1230 1060 x 1380 1180 x 1655 1360 x 1755 1430 x 2000
Overall Space (HXiXE) mm 100 x 1260 x 2140 1060 x 1400 x 2400 1130 x 1500 x 2585 1230 x 1700 x 2785 1310 x 1830 x 2945 1450 x 2135 x 3235 1620 x 2270 x 3685 1680 x 2540 x 3775
Optional
Pneumatic Dia Cushion Tonnage tf 3.5 3.5 6 6 8 10 14 14
  Stroke mm 50 50 70 70 90 100 110 110
  Pad Area mm 300 x 210 300 x 210 380 x 260 410 x 260 480 x 300 540 x 340 640 x 440 640 x 440


Standard Accessories
  • Motorised Grease Lubrication
  • Counter Balancers of Slide (40 Tonne & above)
  • Rotary Cam Limit Switch (Imported)
  • Anti Repeat Safety through PLC
  • Magnetic Production Counter (Imported)
  • Anti Repeat Safety through PLC
  • Magnetic Production Counter (Imported)
  • Dual Solenoid Valve (Imported)
  • PLC Based, 24V DC Electrical Control Panel
  • PLC with Fault finding Facility
  • Hydraulic Overload Safety (Imported)
  • Die Height Indicator (Imported)
  • Motorised Slide Adjustment (60 Tonne & above)
  • Miss Feed Sockets
  • Air Outlets
Optional Accessories
  • Variable Stroke
  • Foot Switch
  • Knockout system
  • Photo Electric Safety
  • Pneumatic Dia Cushion Bellow type
  • Anti Vibration Mounts
  • Variable Speed through VFD
  • Quick Dia Change System
  • Automation Line & Accessories
  • Power Take Off Shaft
