H Frame Deep Drawing Hydraulic Press

We are Authorised Dealer, Supplier, Service Provider of H Frame Deep Drawing Hydraulic Press, and our set up is situated in Pune, Maharashtra, India.

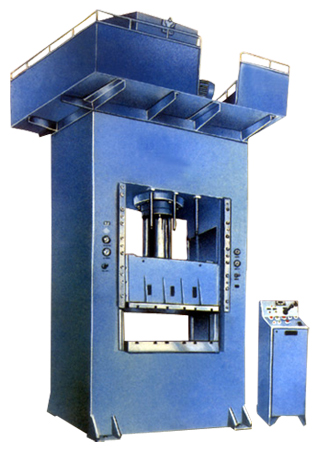

Hydraulic Press H Type Deep Drawing

SPECIFICATIONS
Main Ram Capacity In Ton 100 200 300 400 500
Die Cushion Capacity In Ton 40 100 120 150 200
Main Ram Stroke In mm 400 600 700 800 900
Die Cushion Stroke In mm 200 300 350 400 400
Day Light In mm 700 1050 1150 1300 1450
Main Table Area In mm (FBXLR) 700x800 800x1000 1000x1200 1000x1200 1000x1200
Ram Table Area In mm (FBXLR) 700x800 800x1000 1000x1200 1000x1200 1000x1200
Working Height In mm 750 750 750 750 750
Power 20 40 50 50 75

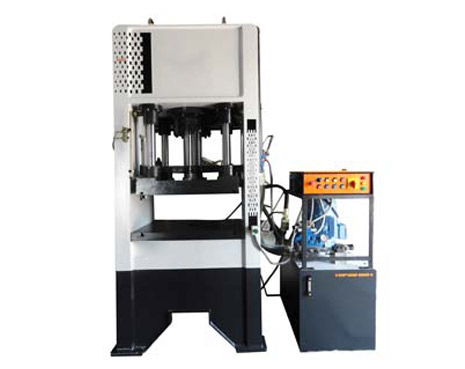

Hydraulic Deep Drawing Presses

TON TABLE SIZE RAM TO BED STROKE H.P. CUSION CYLINDER STROKE
60 650*550 500 400 10 150 mm
100 950*650 600 400 12.5 150 mm
150 950*750 650 400 15 150 mm
200 1200*800 800 500 15 200 mm
300 1200*800 800 500 20 200 mm
