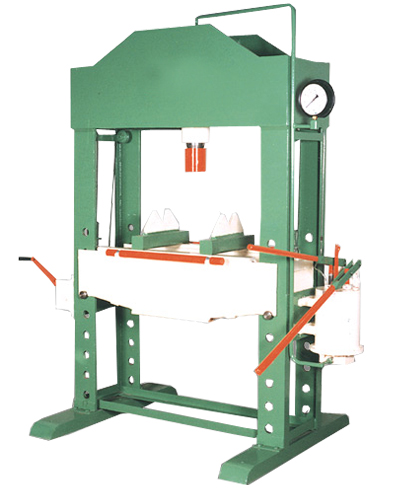

Hydraulic Press H Type Open Frame

Hydraulic Press H Type Open Frame
Hand Operated

Capacity In Tonnes Distance Between Column Distance Between Ram To Bed Stroke
5 160x400 125x500 75
15 200x750 150x650 100
25 280x800 175x800 125
40 375x950 175x900 140
60 425x1010 175x900 150
75 450x1125 175x900 150
100 500x1200 175x900 150
150 600x1300 200x1000 150

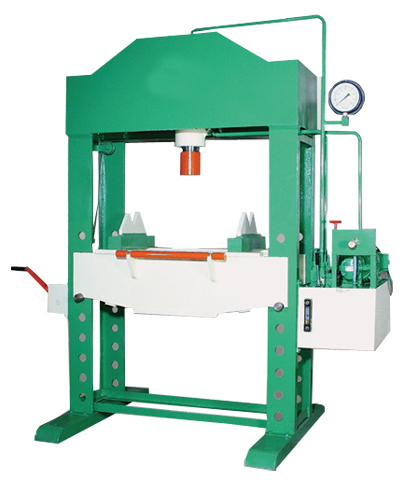

Hydraulic Press H Type Open Frame
Power Operated

Capacity In Tonnes Distance Between Column Distance Between Ram To Bed Stroke Motor H.P.
5 160x400 125x500 100 2
15 200x750 150x650 150 3
25 280x800 175x800 175 3
40 375x950 175x900 175 3
60 425x1010 175x900 200 5
75 450x1125 175x900 200 5
100 500x1200 175x900 200 5
150 600x1300 200x1000 225 7.5
200 700x1400 400x1200 225 10
250 800x1500 400x1200 250 15
300 900x1600 400x1200 250 20
