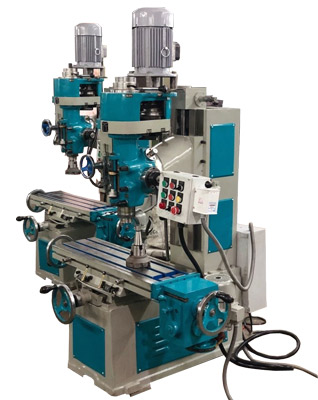

Drilling Cum Milling Machines

Drilling Cum Milling Machines
Specification

Working Table Size : 850 X 280
X - Travel - 550
Y - Travel - 300
Z – Travel - 400


Bottom body size Width 450mm, Length 1000mm and Height 450mm. Piller size Height 1000mm, Length 280mm, Width 250mm.

  •  Quill Dia 90mm.
  •  Quill travel with Auto Feed 127mm.
  •  I.S.O 40 Adopter Nose.
  •  No. Of speeds 8Minimum 80to 3000 R.P.M.
  •  Motor 2 H.P. 1440.

Distance between Table to Adopter Nose : Minimum 0mm Maximum 400mm.


  •  Travel X-Axis 550mm, Y-Axis 300mm, Z-Axis 400mm.
  •  All screws in 5mm pitch. Lead screw Alloy Steel reading 0.05mm punching 1rotation 5mm.
  •  Vertical Up and Down reading 2.5mm per rotation.
  •  All casting parts are grade 1 casting.
  •  All X-Y-Z slides fitted with bearings for smooth running.
  •  Overall dimensions 1100mmX1000mmX1500mm Height.
