H Type Power Press Machines

We are Authorised Dealer, Supplier, Service Provider of H Type Power Press Machines, and our set up is situated in Pune, Maharashtra, India.


Power Press Machines H-Type

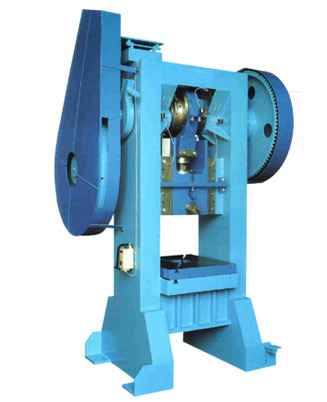

Mechanical Power Press Machines H-Type
Power Press Machines H-Type

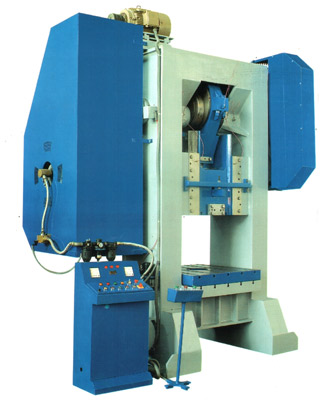

Pneumatic Clutch Power Press Machines H-Type
Special Features

H shaped press frame provides extreme structural rigidity and uniform parallel deflection producing increased tool life.

Extremely heavy duty, forged with tensile steel crankshaft to ensure minimum deflection.

Variable stroke changed in minutes to provide the ideal stroke for specific operation.



Specification
SPECIFICATIONS   30 Tons 50 Tons 80 Tons 100 Tons 150 Tons 200 Tons 250 Tons 300 T 400 T 500 T
Bed Size LR x FB mm 440 x 440 445 x 511 475 x536 580 x 655 642 x 715 680 x 800 900 x 900 925 x 950 950 x 1000 1000 x 1100
Bed to Ram Bottom mm 291 295 317 415 483 520 550 600 650 700
Stroke mm 76 88 102 114 127 135 152 175 200 200
Adjustment of Slide mm 25 28 30 35 35 40 45 50 50 65
Bolster Thickness mm 75 68 72 75 96 102 102 110 120 120
Bed Opening mm 100 100 125 150 150 175 175 200 200 200
Shank Hole Dia mm 31 31 37 44 51 57 67 67 75 75
Floor to Top of Bed mm 762 725 740 751 775 762 813 850 850 850
No. of Strokes per Min SPM 50 45 40 40 35 35 30 30 28 28
Motor Power Required H.P. 3 / 1440 5 / 1440 7.5 / 1440 10 / 1440 15 / 1440 20 / 1440 25 / 1440 30 / 1440 40 / 1440 50 / 1440
