All Geared Universal Milling Machines

We are Authorised Dealer, Supplier, Service Provider of All Geared Universal Milling Machines, and our set up is situated in Pune, Maharashtra, India.

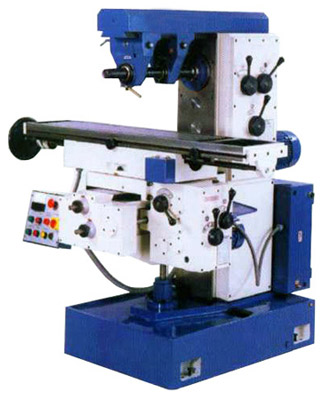

All Geared Universal Milling Machines
Specifications of All Geared Universal Milling Machine
Range
 U3 U4
Table Overall Size 1600 x 300 mm 2000 x 350 mm
Clamping Area 1200 x300 mm 600 x 350 mm
Long. Travel power/manual 975/1000 mm 1275/1300 mm
Cross / Vertical Traverse 300 mm 350 mm
Spindle Nose 425 mm 425 mm
Speed / range 18/42-1500 18/35-1800
Feed /range Long. & cross 18/16-800 18/16-800
Feed/ Range vertical 18/4-200 18/4-200
Rapid - Long ./Cross 3200 3200
Rapid- Vertical 800 800
Quill traverse in Vertical model only 100 100
Motor HP - Spindle/Feed 7.5/3 hp 10/3 hp

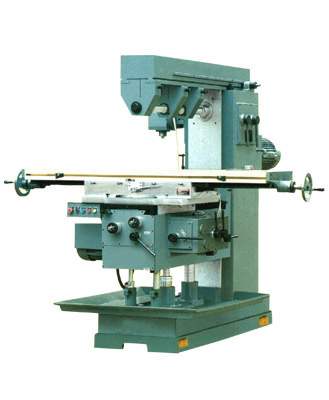

All Geared Universal Milling Machines

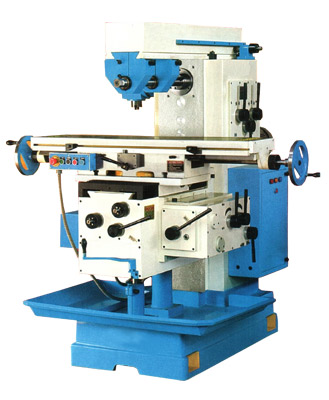

All Geared Universal Milling Machines

Specifications of All Geared Universal Milling Machine
MODEL 2B 3B 4B 5B
Table
Working Surface 1300x290 1400x350 1600x360 1800x400
Swivel 45o 45o 45o 45o
T Slot Nos/Size 3/17 3/14 3/17 4/17
T-Slot centre 65 80 90 80
X-Longitudinal Travel 650 775 900 1100
Y-Cross Travel 205 255 305 450
Z-Vertical Travel 400 475 550 600
FEEDS
No. Of Feeds 18 18 18 18
Range Of Longitudinal Feed / min 13 to 410 13 to 410 13 to 410 13 to 410
Range Of Cross Feed/min 13 to 410 13 to 410 13 to 410 13 to 410
Range Of Vertical Feed/min 2.5 to 80 2.5 to 80 2.5 to 80 2.5 to 80
No. Of Rapid Feeds 1 1 1 1
Longitudinal apid Feeds/min 1100 1100 1100 1100
Corss Rapid Feeds/min 1100 1100 1100 1100
Vertical Rapid Feeds/min 175 175 175 175
SPINDLE
No. Of spindle Speeds 12 12 12 12
Range of Spindle Speeds (RPM) 40 to 1150 40 to 1150 40 to 1150 40 to 1150
Spindle Taper ISO 40 ISO 40 ISO 40 ISO 40
Arbour Diameter 25.4 25.4 25.4 32.00
ELECTRIC
Main Motor 3 H. P. 5 H. P. 7.5 H. P. 7.5 H. P.
Feed Motor 2 H. P. 2 H. P. 3 H. P. 5 H. P.
Coolant Motor 0.1 H. P. 0.1 H. P. 0.1 H. P. 0.1 H. P.
DIMENSIONS
Overall Length 1850 2000 2100 2500
Overall Width 1600 1750 1950 2500
Overall Height 1680 1800 1880 2400
Net Weight Kg. 2600 3300 3700 4200
Gross Weight Kg. 2900 3600 4000 4600

Note : Specifications are liable to be changed without notice

These Milling Machines (Universal Vertical & All Geared) with latest technology made of high grade standardized cast iron, Spindle and gears of quality steels, Bearings of genuine quality. Alloy steel Arbour, Carbon steel Lead screw with working pressure of table Lead screw taken up by thrust bearings.

Designing of the machine is under the guidance of qualified engineers and well experienced technical personal. Machine is easy to operate and gives maximum production with minimum fatigue.

Optional Accessories
  •  Dividing Head
  •  Rotary Table
  •  Coolant Pump
  •  Rack Cutting Attachment
  •  Vertical Attachment & Milling Vice
  •  Slotting Attachment
  •  Hobbing Attachment
