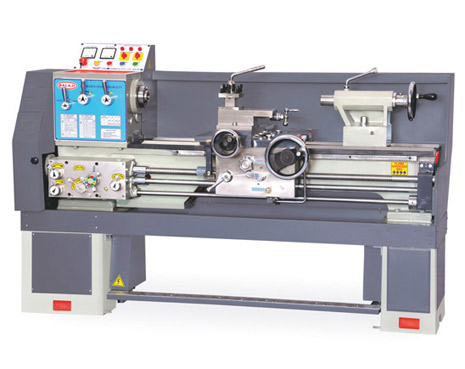

We are Authorised Dealer, Supplier, Service Provider of All Geared Medium Duty Lathe Machines, and our set up is situated in Pune, Maharashtra, India.
| Model » | AM – 215 Series | AM – 250 Series |
| Type Of Bed | Hardened Bed ways | Hardened Bed ways |
| Swing Over Bed | 423 m.m.. | 490 m.m. |
| Height of Centre | 215 m.m. | 250 m.m. |
| Width of Bed | 277 m.m | 277 m.m. |
| Swing Over Cross Slide | 250 m.m. | 320 m.m. |
| Swing in Gap | 620 m.m. | 690 m.m. |
| Length of Gap in Front of Face Plate | 125 m.m. | 125 m.m. |
| No. of Spindle Speed | 8 | 8 |
| Spindle Speed Range | 40 – 1200 R.P.M. | 40 – 1200 R.P.M. |
| Taper in Spindle Sleeve | MT – 5 | MT – 6 |
| Spindle Bore | 38 m.m. | 50 m.m. |
| Spindle Nose Diameter | 76.20 m.m. | 76.20 m.m. |
| Spindle Nose | Threaded / A2-4 | Threaded / A2-6 |
| Spindle threads | 6 T.P.I. | 6 T.P.I. |
| No. of British Threads | 44 | 44 |
| Range of British Threads | 2 to 60 TPI | 2 to 60 TPI |
| No. of Metric Threads | 24 | 24 |
| Range of Metric Threads | 0.5 to 15 m.m. | 0.5 to 15 m.m. |
| No. of Feeds | 40 | 40 |
| Range of Longitudinal Feeds | 0.066 to 2 m.m. / Rev. of Spindle | 0.066 to 2 m.m. / Rev. of Spindle |
| Range of Transverse Feeds | 0.0165 to 0.50 m.m. / Rev. of Spindle | 0.0165 to 0.50 m.m. / Rev. of Spindle |
| Lead Screw Diameter / Pitch | 31.75 m.m. / 4 TPI | 31.75 m.m. / 4 TPI |
| Tail Stock Spindle Diameter | 50.8 m.m. | 50.8 m.m. |
| Taper in Tail Stock Quill | MT – 3 | MT – 3 |
| Cross Slide Travel | 215 m.m. | 250 m.m. |
| Compound Slide Travel | 140 m.m. | 140 m.m. |
| Tail Stock Sleeve Travel | 150 m.m. | 150 m.m. |
| Tool Post Square | 100 x 100 m.m. | 100 x 100 m.m. |
| Tool Shank Size | 19 x 19 m.m. | 19 x 19 m.m. |
| Suitable Electrical HP | 2 HP | 2 HP |
| AM Series | ||||||
| Length of Bed | 1370 m.m.(4' - 6") | 1600 m.m. (5'- 3") | 1825 m.m. (6') | |||
| Admit Between Centre | 660 m.m. | 890 m.m. | 1200 m.m. | |||
Standard Accessories
- Hardened bed ways
- Chuck back plate 1 no
- Centre adapter
- Dead centres 2 nos
- Tool Post Spanner
- Motor pulley
- Thread dial indicator
- Change gear set – 1 (For metric and inch both)
- Norton Gear Box
Optional Accessories
- Face plate
- Carrier plate
- Steady rest
- Follow rest
- Taper turning attachment
- Motorised coolant pump with tank and fittings
- Rear tool post with extended cross slide
- Chuck back plates (Extra)
- Electricals with Panel and Push Button Switches
- Electrical (Motor / Panel board Wiring / Push button switches / v-belt fittings)
Salient Features
- Head stock spindle are made by alloy steel & precision grinding.
- Our ultimate goal is to win the full satisfaction of our client and we are committed to the goal.
- All rotating parts are balanced.
- Head stock is very rigid & structural standard design.day it’s ordered 99% of the time.
- Easy Maintenance gear box design.
