Toolpost Grinders

Toolpost Grinder
Toolpost Grinder

To be mounted on lathe tool post. The center of the tool post has to be matched with the center of the lathe. Use a round C.I. / M.S. washer and machine the faces to match the heights.

Applications

For use on Lathes, Shapers, Planer Machines, etc. for operations like Cylindrical External & Internal Grinding, Face / Radius / Surface Grinding.

Spindle

Made from alloy steel suitably heat treated and precision ground. Precision preloaded bearings used.


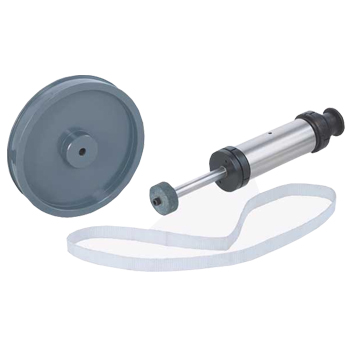

Standard Accessories

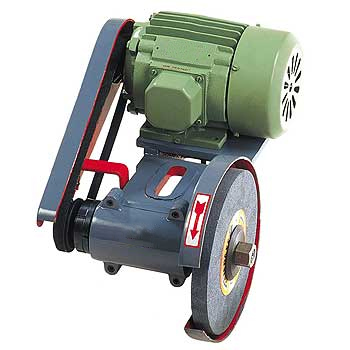

  •   Tool Post Grinder is delivered complete with sturdy guards, motor / spindle pulleys, belts and grinding wheel.
  •   Electric motor supplied only against request at extra cost.
  •   External Grinder Price includes the cast iron mounting body whereas the internal grinding attachment price does not include the cast iron body.

SizeGrinding WheelMotorSpindle Speed RPMHou
sing
Dia MM
Int. Spindle
Arbour
Length
Spindle Pully Dia.Motor Pully Dia.
ExternalInternalHPRPMExt.Int.Ext.Int.Ext.Int.
4" 4" x 12 x 12 (34") 34" x 1" x 14" 14 Frame Size: 63 2800 6000 18000 44.0 212" 1" 1" 212" 6 12"
6" 6" x 34 x 58" (114") 112" x 58" x 14" 12 2800 3500 16800 49.0 312" (Max 512") 2" 114" 212" 7 58"
8" 8" x 34 x 34" (114") 112" x 58" x 14" 1 2800 2800 9700 59.5 4" (Max 6") 212" 178" 212" 6 12"
10" Light Duty 10" x 1" x 34" (114") 112" x 58" x 14" 1 2800 2800 9700 59.5 4" (Max 6") 212" 178" 212" 6 12"
