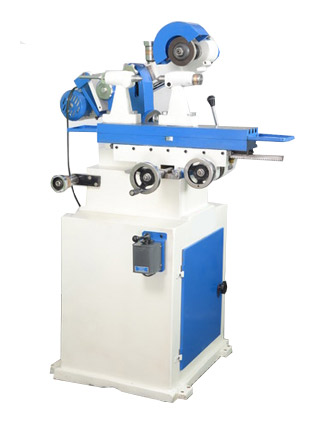

We are Authorised Dealer, Supplier, Service Provider of Tool and Cutter Grinders, Light Duty, and our set up is situated in Pune, Maharashtra, India.
Functional Parameters
| MM
|
|---|---|
|
Maximum Diameter of cutter that can be grind
|
250 mm |
|
Maximum Distance Between Centres
|
300 mm |
|
Maximum length of cutting edges grind
|
260 mm |
|
Grinding spindle speeds
|
4800 RPM |
|
Swing diameter on standard centres & Workhead
|
275 mm |
|
Working surface of table
|
560 x 135 |
|
Longitudinal Traverse
|
225 mm |
|
Cross Traverse
|
150 mm |
|
Packing & Installation
|
|
|
Base of the machine
|
625 x 600 |
|
Floor area occupied
|
766 x 1145 |
|
Height of the machine
|
1375 mm |
| Weight of the machine with standard accessories | 450 kg. |
| Dimensions of packing Box | 1525 x 915 x 915 mm |
| Electric Motor | 0.5 HP - 2800 RPM |
