Rotary Table

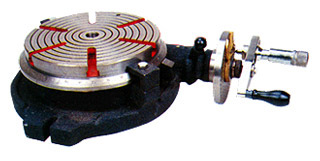

Horizontal Rotary Milling Table

High accuracy, easy reading all dias clear & functional arrangements of all operating elements strudy yet good looking practical design. these are widely used for circular cutting, angle setting, boring and spot facing with a milling machine. Work as an index center in the horizontal position, as well as conventional Rotary Table, graduated 360 Provisions for fine adjustments when setting work peice. Efficient lock provided. Worm drive disengagement is quick and precise. An eccentric sleeve with thrust bearing races encases the worm shaft. End play in worm shaft is adjustable.

Specification
SIZE681012151820
DIA150200250300375450500
TABLE10131316162020
CENTRE2333344
WORM1:401:401:401:401:401:401:40
WHEEL2221111
HEIGHT95105110130135160160
WEIGHT2026407090120135

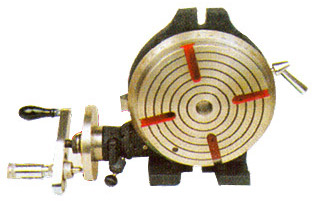

Vertical Rotary Milling Table

High accuracy, easy reading all dias clear & functional arrangements of all operating elements strudy yet good looking practical design. these are widely used for circular cutting, angle setting, boring and spot facing with a milling machine. Work as an index center in the vertical position, as well as conventional Rotary Table, graduated 360 Provisions for fine adjustments when setting work peice. Efficient lock provided. Worm drive disengagement is quick and precise. An eccentric sleeve with thrust bearing races encases the worm shaft. End play in worm shaft is adjustable.

Specification
SIZE IN INCHES681012151820
DIA OF TABLE IN MM150200250300375450500
TABLE T-SLOT SIZE IN MM10131316162020
CENTRE BUSH BORE (MORSE TAPER)2333344
WORM & GEAR RATIO1:401:401:401:401:401:401:40
WHEEL CALIBRATION (IN MINUTES)2221111
HEIGHT OVERALL HORIZONTAL IN MM95105110130135160160
HEIGHT OVERALL VERTICAL IN MM240300365425530620620
WEIGHT (APPROX) IN KGS2430457798135155
