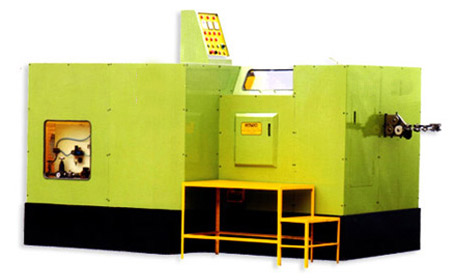

We are Authorised Dealer, Supplier, Service Provider of Bolt Formers, Bolt Former Machines and our set up is situated in Pune, Maharashtra, India.
Description |
M/C TYPE | 84S |
103S |
133S |
134S |
| NO.OF FORGING STATION |
4 |
3 |
3 |
4 |
|
| FORGING LOAD |
kg |
60,000 |
80,000 |
115,000 |
120,000 |
| MAX.CUT-OFF DIA |
mm |
o10 |
o12 |
o15 |
o15 |
| MAX.CUT-OFF LENGHT |
mm |
75 |
105 |
140 |
140 |
| MAX.OUT PUT |
PCS/MIN |
160 |
108 |
140 |
110 |
| P.K.O. STROKE |
mm |
12 |
15 |
20 |
20 |
| K.O. STROKE |
mm |
52 |
80 |
102 |
102 |
| MAIN SLIDER |
mm |
106 |
150 |
200 |
200 |
| MAIN MOTOR |
HP |
20 |
25 |
*40 |
40 |
| CUT-OFF DIE DIA |
mm |
o53 |
o45 |
o63 |
o63 |
| MAIN DIE DIA. |
mm |
o60*80L |
o75*108L |
o86*135L |
o86*135L |
| DIE PITCH |
mm |
80 |
90 |
98 |
98 |
| PUNCH DIA |
mm |
o45*95L |
o53*112L |
o60*130L |
o60*130L |
| MACHINE NET WT(APPROX) |
kg |
12,000 |
14,000 |
19,500 |
21,000 |
| NORMAL SIZE OF BOLT |
mm |
5~8 |
6~10 |
8~12.7 |
8~12.7 |
| SHANK LENGTH OF BLANK |
mm |
15~50 |
15~70 |
20~100 |
20~100 |
Specification are subject to change as we keep making improvements in design. |
|||||
