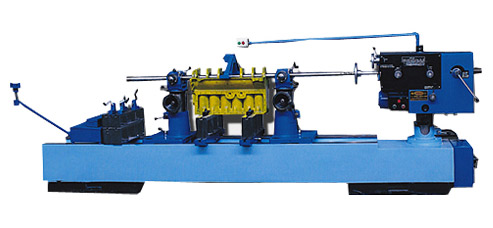

Line Boring Machines


Model 1550 MM 2000 MM 2500 MM
Max. length of Cylinder Block Block 1550 mm (61") 2000 mm (79") 2500 mm (98.5")
Distance from built in Parallels to centre of Boring Bar Max/Min 815 mm (32"),515 mm (20") 815 mm (32"),515 mm (20") 815 mm (32"),515 mm (20")
Boring Capacity 34-150 mm, (1.5/16" - 5 7/8") 34-150 mm, (1.5/16" - 5 7/8") 34-150 mm, (1.5/16" - 5 7/8")
Spindle Speeds Continuously variable 50 to 750 RPM Continuously variable 50 to 750 RPM Continuously variable 50 to 750 RPM
Feeds (Both Directions) 0.04-0.15 mm/rev,
(0.0016"-0.0059" rev)
0.04-0.15 mm/rev,
(0.0016"-0.0059" rev)
0.04-0.15 mm/rev,
(0.0016"-0.0059" rev)
Max. Travel of Boring Bar 325 mm (12.13/16") 325 mm (12.13/16") 325 mm (12.13/16")
Additional travel with Extension Bar 260 mm (10.1/4") 260 mm (10.1/4") 260 mm (10 1/4" )
Electric Motor 2 HP - 1410 RPM 2 HP - 1410 RPM 2 HP - 1410 RPM
Length of the Machine 3550 mm (140") 4050 mm (159") 4600 mm (181")
Width of the Machine 760 mm (30") 760 mm (30") 760 mm (30")
Max. Height of the Machine 1800 mm (71") 1800 mm (71") 1800 mm (71")
Work Space Required 5050x760mm, (200" x 30") 5600x760mm, (220" x 30") 6050x760mm, (238" x 30")
Net Weight (Approximate) 1650 Kg 2000 Kg 2250 Kg
Gross Weight (Approximate) 2150 Kg. 2800 Kg. 2900 Kg.
Shipping Dimension cms LxBxH 385x95x155 440x95x155 500x95x155
Shipping Volume Approimate cm3 5.70 M3 6.50 M3 7.40 M3
Note : Due to constant improvements the descriptions, dimensions and illustrations are not binding in detail.
