C Type Power Press Machines

We are Authorised Dealer, Supplier, Service Provider of C Type Power Press Machines, and our set up is situated in Pune, Maharashtra, India.

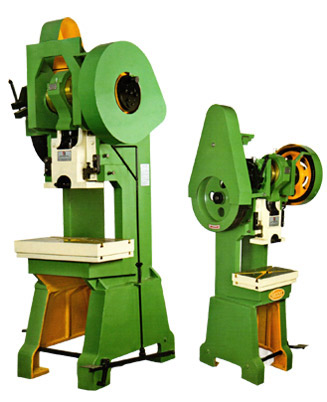

Power Press Machines C-Type

Frame

The Frame is of all Steel Construction, Fabricated from Steel Plates with Suitable Cross ribbings. Presses upto 30T will be supplied with C.I. Legs. Proper alignment of the frame is ensured by machining of the cut steel plates before welding.

Clutch

The clutch is of pin/rolling key type. The clutch is rigid and well supported. The clutch gives continues stroke for mass production.

Crank Shaft

Crank Shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for perfect alignment.

Flywheel

Properly sized flywheel, is made of high grade cast iron & is balanced for storing and releasing adequate energy for the pressing operations.

Gears

Gears are of steel cast. Gear teeth are generated by hobbing.

Table and Ram

Table and ram are made of heavy duty cast iron & seasoned. They are perfectly aligned to each other quality pressings.

Lubrication

An efficient shot lubrication system has been provided for lubrication the sliding surface and moving parts. The lubrication is achieved through hand pump.


Description 5 TON 10 TON 20 TON" 30 TON 50 TON 80 TON 100 TON 150 TON 200 TON 250 TON
Crankshaft Diameter 50 57 70 83 102 114 127 150 175 200
Adjustment of Stroke 6-50 6-60 11-75 13-83 13-100 25-114 32-127 32-127 50-175 50-200
Adjustment in Ram 25 25 32 32 40 40 50 50 60 60
Punch Hole in Ram 25 25-4 31-75 38-1 50-8 50-8 57 57 63-5 63-5
Hole in Bed 65 75 89 102 114 150 180 200 225 225
Length & Width of Bed 200x350 250x400 305x508 355x610 450x730 558x812 610x863 660x914 711x990 762x1066
Length & Width of Bed 200x350 250x400 305x508 355x610 450x730 558x812 610x863 660x914 711x990 762x1066
Thickness of Bed 50 50 63 75 75 90 115 127 140 150
Distance Between Bed to Ram 180 228 300 355 400 450 507 558 610 711
Stroke per Minute 70 60 50 45 35 35 35 30 30 25
H. P. Required 0.5 1 2 3 5 7.5 10 15 20 25
Weight Approx 350 550 1100 1400 2450 3850 4800 6000 8500 11500
Standard Accessories

Motor Pully, Motor Stand, Fly Wheel Guard, Gear Guard, Stud Driver.

Extra Accessories

Electric Motor, Motor Starter, V-Belts, Oil Pump, Die Clamps Etc.

Note
  •  In ungeared machine 960 RPM and in Geared / Double Geared 1440 RPM Motor to be used.
  •  5, 10, 80, 100, 150, 200, 250 Tons are single geared.
  •  20, 30, 50 Tons are double geared.
  •  All Dimensions are in MM & Weight in Kg. Approximate only. As continuous improvements are contemplated for the product, the design and specifications are not binding.
  •  All Data, Specification & photographs are subject to change without prior notice.

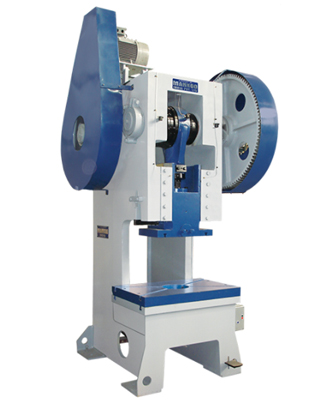

Inclinable / Non-Inclinable Type Presses

Slotting Machine Heavy

Left to right shaft arrangement is better suited when the press is desired to be inclinable. All other aspects remain the same in case of left to right shaft arrangement.


Special Features
  •  The main frame is extremely rigid and will designed fabricated steel structure.
  •  The stresses are so balanced that with full load acting between slide and the table, the compressive and tensile stresses as well as the angular opening of the frame are extremely low. This results in long toll life and accurate stamping.
  •  The closed back structure offers maximum rigidity in the transverse direction and any eccentric loads on the machine are easily sustained.
  •  In case of left to right shaft presses the solid frame construction is adopted with pre-machined, press fitted and welded cartridges for main bearings in place of split cap arrangement. This construction is advantageously used to avoid welds as load bearing members.

SPECIFICATIONS   10 Tons 20 Tons 30 Tons 50 Tons 80 Tons 100 Tons 150 Tons 200 T 250 T
Bed Size LR x FB mm 482 x 318 542 x 360 644 x 406 750 x 508 813 x 546 940 x 623 1016 x 665 1100 x 700 1200 x 800
Bed to Ram Bottom mm 243 276 330 358 373 535 590 615 635
Stroke Adjustable or Fix mm 51 63 76 90 102 114 130 150 175
Adjustment of Slide mm 25 28 30 35 35 40 45 50 50
Bolster Thickness mm 67 67 72 85 85 85 95 100 120
Bed Opening mm 100 100 125 150 150 175 175 200 200
Shank Hole Dia mm 32 40 40 46 50 53 57 57 65
Floor to Top of Bed mm 735 726 773 820 836 850 850 850 850
No. of Strokes per Min S.P.M. 55 50 45 40 40 40 35 30 28
Motor Power Required H.P. / RPM 1.5 /1440 2 / 1440 3 / 1440 5 / 1440 7.5 / 1440 10 / 1440 15 / 1440 20 / 1440 25 / 1440
