Bolt / Scre Making Plant

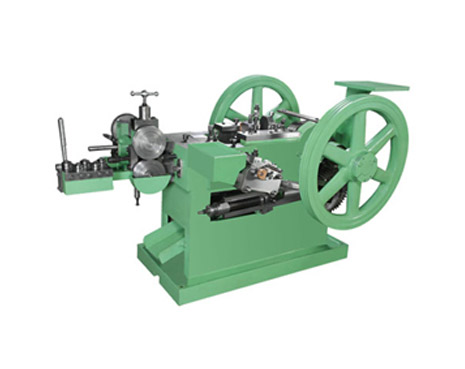

Double Stroke Head

Double Stroke Head

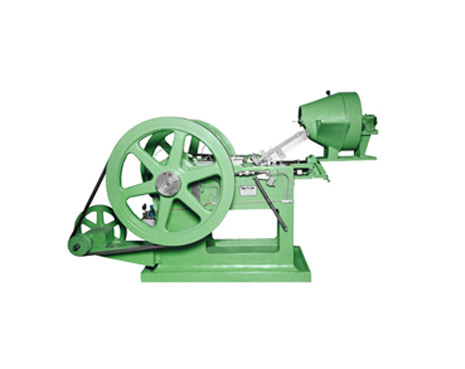

Bolt Head Trimmer

Bolt Head Trimmer

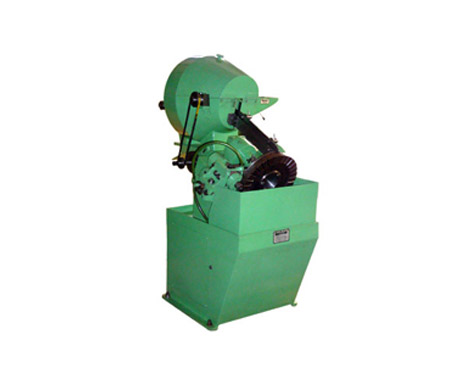

High Speed Slotting

High Speed Slotting

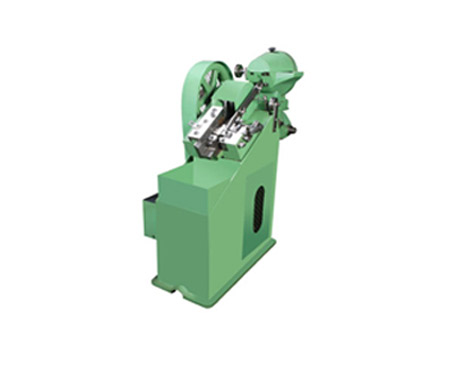

High Speed Thread Rolling

High Speed Thread Rolling



Double Stroke Header Machine
Type 8 10 12 16 20
  inch mm inch mm inch mm inch mm inch mm
Max. Wire Dia 5/16 8 3/8 10 1/2 12 5/8 16 3/4 20
Min. Wire Dia 5/32 4 3/16 5 1/4 6 3/8 10 1/2 12
Range of Sahank Length 2.5 65 4 100 4 100 5 125 6 150
Max.length of wire blank 3.5 90 5.25 130 5.25 130 7 175 8 200
Output pc/mint 60-90 50-80 50-60 45-50 40-50
Power required H.P. 5 10 20 25 35
Net Weight Kgs. 2200 4200 5500 7000 -
Overall dimensions in MM 1780x1270x1270 2160x1575x1500 2670x1575x1520 3000x1600x1600
Bolt Head Trimming Machine
Type 208 210 212 216 220
  inch mm inch mm inch mm inch mm inch mm
Rang of Shank Diameter 5/16 8 3/8 10 1/2 12 5/8 16 3/4 20
Maxium Shank length 2.5 65 3 75 4 100 5 125 6 150
Output Pcs / Min. 80 80 70 50 40
Power required H.P. 3 5 7.5 15 20
Net weight Kgs 1900 2500 2800 3200 4000
Overall Dimensions in MM 2050x1050x1370 2090x1100x1500 2450x1020x1500 2600x1100x1500 2600x1250x1600
High Speed Thread Rolling Machine
Type 308 310 312 316 320
  inch mm inch mm inch mm inch mm inch mm
Max.Screw Dia for Mild Steel 5/16 8 3/8 10 1/2 12 5/8 16 3/4 20
Max.Shank Length 2.5 65 3 75 6 150 6 150 6 150
Max.Thread Length 2.5 65 3 75 6 150 6 150 6 150
Output Maximum Pcs./Min 130 110 100 50 40
Power required H.P. 5 10 15 21 25
Thread Rolling Dies 115 x 25 x 65 130 x 25 x 75 170 x 35 x 100 170 x 35 x 100 170 x 35 x 100
Length x width x height in mm
Length 130 150 150 150 150
Length
x width x height in Inch 6.00 x 1 x 2.5 6.00 x 1 x 3 7 x 1 x 4 7 x 1 x 4 7 x 1 x 4
Length
5.00 5.00 6 6 6
Net Weight Kgs. 1400 2100 3000 3500 5000
Overall Dimensions in MM 1650 x 900 x 1680 1990 x 1346 x 1780 2310 x 1400 x 1900 2400 x 1500 x 1900 2600 x 1500 x 2000
