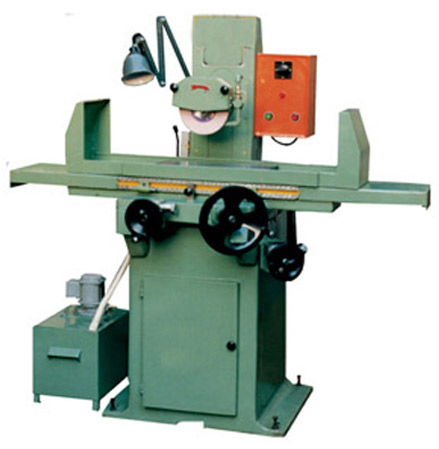

We are Authorised Dealer, Supplier, Service Provider of Manual Surface Grinding Machines, Manual Surface Grinder Machines, and our set up is situated in Pune, Maharashtra, India.
| Specifications of Surface Grinder Manual | |||
| SPECIFICATION | M -914 - OT |
M -1020 - OT |
M-1024 - OT |
Working Surface of Grinding Area |
225 x 350 mm |
225 x 500 mm |
225 x 600 mm |
Max. Magnetic Table Travel L x B |
250 x 360 mm |
250 x 525 mm |
250 x 625 mm |
Max. Grd. Height Under Wheel |
240mm |
240mm |
250mm |
Vertical Feed Graduation |
0.01 mm |
0.01 mm |
0.01 mm |
Cross Feed Graduation |
0.05 mm |
0.05 mm |
0.05 mm |
Elevator movement with MICROFEED |
0.002 mm |
0.002 mm |
0.002 mm |
Spindle Speed |
2800 RPM |
2800 RPM |
2800 RPM |
Grinding VYheel (Dia x Bore x Width) |
178 x'31.75 x,12.7 |
178 x 31.75 x 12.7 |
200 x 31.75 x20 |
Electric Motor Recommended |
0.75 HP 3 Phase |
1.0 HP 3 Phase |
1.5 HP 3 Phase |
Magnetic chuck Suitable (Optional) |
200 x 300 mm |
200 x 450 mm |
200 x 600 mm |
Diamond Dresser with Holder |
0.5 CR |
0.5 CR |
0.5CR |
Wooden Case Dimensions |
1050 x 1175 x 1700 |
1050 x 1175 x 1700 |
1100 x 1200 x 1800 |
