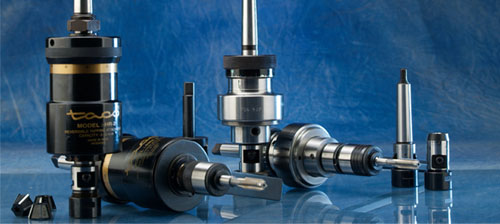

Tapping Attachment

Model TC 0 TC 1 TC 2 TC 3 TC 4 TC 5
Cpapcity M2 - M4
1/16" - 3/16"
M3 - M10
1/8" - 3/8"
M6 - M16
1/4" - 5/8"
M8 - M18
5/16" - 3/4"
M10 - M24
3/8" - 1"
M14 - M30
9/16" - 1 1/4"
Shank Morse Taper 1 1 or 2 2 or 3 3 3 or 4 4

Model Capacity mm
Collet
( Tap Shank Ø mm )
Tap Adaptor Model Shank (Female) Standard Arbor
Standard Optional
HR 1 1.4.7 S161 (2.5-4.5)
S171 (4.5-6.5)
S151 (1-2.5) - JT 33 JT 33 / MT 1 or
JT 33 / MT 2
HRF 1 (1/16" - 1/4") - - QA - 0
HR 2 3-12 S212 (3.5-6.5)
S222 (6.5-10)
S232 - JT 6 JT 6 / MT 2 or
JT 6 / MT 3
HRF 2 (1/8" - 1/2") - - QA - 1
HR 3 8 - 20 S413 (4.5-10)
S453 (10-16)
S433 (2.8-7) - M20 P2.5 or
JT 3
M 20/MT 3
or
M 20/MT 4
or
JT 3/MT 3
HRF 3 (5/16" - 3/4") - - QA - 40
HR 4 14 - 30 S613 (9-16)
S623 (16-23)
- - M20 P2.5
or
JT 4
M 20/ MT 4
or
M 20/MT 5
or
JT 4/MT 4
HRF 4 (9/16" - 1 1/8") - - QA -3
