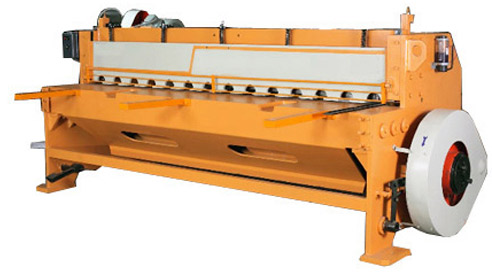

Mechanical Shearing


Model No.
1
2
3
4
5
6
7
8
9
DESCRIPTION
1270 x 2
1525 x 2
2030 x 2
2540 x 2
3125 x 2
1270 x 4
1525 x 4
2030 x 4
2540 x 4
Cutting Cap. Thick Of M.S.
2.0
2.0
2.0
2.0
2.0
4.0
4.0
4.0
4.0
Cutting Cap. Length
1270
1525
2030
2540
3125
1270
1525
2030
2540
Depth of Throat
100
100
100
100
100
100
100
100
100
Standard Front Gauge
900
900
900
900
900
750
750
750
750
Standard Rear Gauge
750
750
750
750
750
1000
1000
1000
1000
Table Height
850
850
850
850
850
850
850
850
850
Table Width
425
425
425
425
425
450
450
450
450
Blade Length
1270
1525
2030
2540
3125
1270
1525
2030
2540
Blade Width
50
50
50
50
50
63
63
63
63
Blade Thickness
12
12
12
12
12
18
18
18
18
Stroke Per Minute
60
60
60
50
50
60
60
50
50
Hold Down To Knife Edge
20
20
20
20
20
25
25
25
25
Machine Length
2150
2450
2900
3450
4150
2300
2500
3000
3550
Machine Width
1450
1450
1450
1450
1525
1525
1525
1700
1700
Machine Height
1275
1275
1375
1375
1400
1320
1320
1425
1425
Main Motor HP/KW
2/1.5
3/2.2
5/3.7
5/3.7
7.5/5.6
5/3.7
5/3.7
7.5/5.6
7.5/5.6
Weight Approx.
1800
2050
2600
3350
4100
2350
2750
3250
4200
