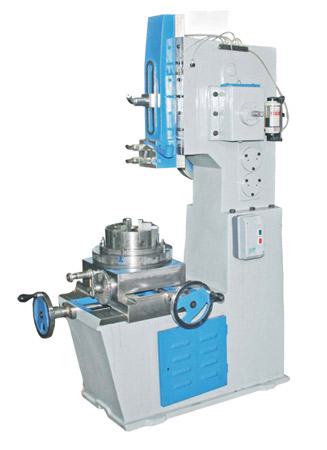

We are Authorised Dealer, Supplier, Service Provider of Heavy Duty Slotting Machines, Slotting Machines, and our set up is situated in Pune, Maharashtra, India.
| Specifications of Slotting Machine | ||||||||
| Particulars | VSH 6" | VSH 8" | VSH 10" | VSH 10 to 12" | VSH 12" | VSH 14" | VSH 16" | VSH 16" |
| Stroke | 6" | 8" | 10" | 10 to 12" | 12" | 14" | 16" | 18" |
| Rotary Table | 11" | 13" | 15" | 15" | 18" | 20" | 20" | 24" |
| Longitudinal Movement | 8" | 10" | 12" | 12" | 14" | 16" | 16" | 18" |
| Cross Movement | 6" | 8" | 10" | 10" | 12" | 14" | 18" | 16" |
| Cutting Speed of Ram Per Munite | 60-90 | 60-90 | 40-60 | 40-60 | 40-60 | 40-60 | 20-50-80 | 20-50-80 |
| Ram Adjustment | 80" | 10" | 12" | 12" | 14" | 16" | 18" | 18" |
| Throat Depath | 8" | 10" | 11" | 11" | 12" | 14" | 15" | 16" |
| H. P. Required | 1 HP | 2 HP | 2 HP | 2 HP | 2 HP | 3 HP | 3 HP | 3 HP |
| Distance from the tool to main column | 10" | 12" | 14" | 14" | 16" | 17" | 18" | 18" |
| Weight Packed (Complete aprox) | 950 | 1050 | 1400 | 1500 | 1800 | 2000 | 2200 | 2400 |
| Specifications of Slotting Machine Extra Heavy Duty | ||||||||
| Particulars | VSH 12" | VSH 14" | VSH 16" | VSH 18" | VSH 24" | VSH 24" | VSH 36" | VSH 40" |
| Stroke | 12" | 14" | 16" | 18" | 24" | 24" | 36" | 40" |
| Rotary Table | 20" | 22" | 22" | 30" | 32" | 32" | 40" | 48" |
| Longitudinal Movement | 16" | 17" | 18" | 22" | 24" | 24" | 28" | 30" |
| Cross Movement | 13" | 14" | 15" | 18" | 20" | 20" | 20" | 22" |
| Cutting Speed of Ram Per Munite | 20-50-80 | 20-50-80 | 15-45-65 | 15-45-65-85 | 15-45-65-85 | 15-45-65-85 | 15-45-65-85 | 15-45-65-85 |
| Ram Adjustment | 16" | 17" | 18" | 20" | 22" | 22" | 24" | 26 |
| Throat Depath | 14" | 16" | 17" | 20" | 24" | 24" | 30" | 32" |
| H. P. Required | 3 HP | 3" | 3" | 5" | 7-1/2 HP | 7-1/2 HP | 10 HP | 10 HP |
| Distance from the tool to main column | 16" | 18" | 20" | 22" | 24" | 24" | 28" | 30" |
| Weight Packed (Complete aprox) | 2000 | 2200 | 2400 | 3500 | 4500 | 5500 | 6500 | 8000 |
Special Feature
- Quite robust and rigid construction to avoid vibrations
- Machine is made with graded castings properly seasoned adn machined with accuracy as per ISI standards.
- Quick return movement to save idle time
- Rocker arm mechanism operated
- Gears - All made of EN series steel, properly cut on hobbing and gear shaping machines.
- Gears in gear box properly hardened and lapped.
- Shafts-Properlly ground and work in ball and taper roller bearings.
- Rotary indexing table with graduated degreeson perphety.
