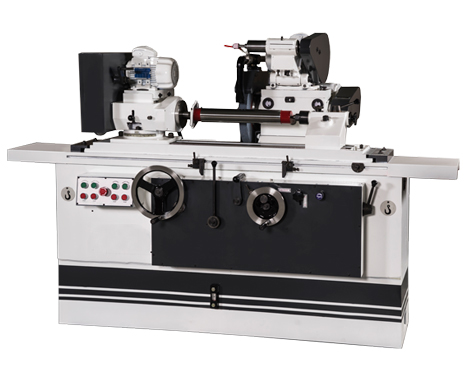

We are Authorised Dealer, Supplier, Service Provider of Hydraulic Cylindrical Grinding Machines, and our set up is situated in Pune, Maharashtra, India.
The machine base is manufactured of one piece close grained graded cast iron box type design, heavily reinforced with ribs provide high rigidity & stability.
V & Flat guid ways precisely hand scrapped with continuous automatic lubrication.
Grinding wheel slide is coated with turcite coated which gives stick slip free movement, excellent vibration damping and high positioning accuracy.
The machine has a rigid Universal Work Head, which can be swivelled to facilitate taper grinding.
The drive to the work head is built for stationery and live spindle grinding
Work Head with Antifriction bearings and variable frequency drive offered as optional.
Coolant supply is provided with electrical pump fitted on separate tank
Wheel Head Spindle is made of special alloy steel ground and micro finish to achieve high dimensional stability and long life.
Spindles runs in precision white metal bearings which give high accuracy and excellent surface finish to the work piece
Cartridge type grinding wheel head spindle with precision antifriction can be offered as optional.
Rigid Tail Stock
Tail Stock is spring loaded and can accept MT-3 Taper
Hydraulic Actuation & Micro taper correction facility in optional
This unit with its independent drive motor is hinged on the wheel head and can be quickly lowered in to grinding position.
The drive to the spindle is transmitted by flat belt.
The machine is supplied with all electrical suitable for 440V, AC, 50 Hzs. The motors are of reputed make, The electrical panel is mounted on one side of the machine, Push button station is located at easy reach of the operator.
MODEL Swing Over table |
Unit mm |
U-127/300 254/300/350 |
U-127/500 254/300/350 |
U-127/500 254/300/350 |
U-127/500 254/300/350 |
U-127/500 254/300/350 |
U-127/500 254/300/350 |
U-127/500 254/300/350 |
U-127/500 254/300/350 |
Admit between Center | mm | 300 | 500 | 625 | 750 | 1000 | 1250 | 1500 | 2000 |
Max Swivel of table | deg. | 7o+2o=9o | 6o+2o=8o | 6o+2o=8o | 6o+2o=8o | 6o+2o=8o | 5o+2o=7o | 5o+2o=7o | 4o+2o=6o |
Table Speed | Min Max |
mm Min |
400 5000 |
400 5000 |
400 5000 |
400 5000 |
400 5000 |
400 5000 |
400 5000 |
Grinding Wheel Diameter | mm | 350 / 400 | 350 / 400 | 350 / 400 | 350 / 400 | 350 / 400 | 350 / 400 | 350 / 400 | 350 / 400 |
Grinding Wheel Width | mm | 40 / 50 | 40 / 50 | 40 / 50 | 40 / 50 | 40 / 50 | 40 / 50 | 40 / 50 | 40 / 50 |
Wheel Head | mm | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
Rapid Approach | |||||||||
Speed of Grinding Wheel | rpm | 1600-2090 | 1600-2090 | 1600-2090 | 1600-2090 | 1600-2090 | 1600-2090 | 1600-2090 | 1600-2090 |
Speed of Work Head | rpm | 60 - 120 - 212 - 380 / Variable Frequency Drive | |||||||
Swivel of Work Head | deg. | 0o-90o | 0o-90o | 0o-90o | 0o-90o | 0o-90o | 0o-90o | 0o-90o | 0o-90o |
Work Head Spindle Nose Taper | MT | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
Tail Stock Spindle Nose Taper | MT | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
Internal Grinding Spindle Dia. | mm | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
Weight Approx. | Kg. | 1800 | 2000 | 2100 | 2500 | 3000 | 3100 | 3300 | 3800 |
Floor Space (L x W) | mm | 2400 x 1260 | 2760 x 1260 | 2950 x 1260 | 3410 x 1260 | 4370 x 1260 | 4870 x 1260 | 5760 x 1260 | 6760 x 1260 |
