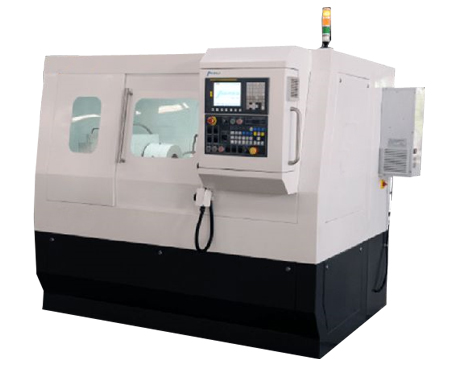

We are Authorised Dealer, Supplier, Service Provider of CNC Cylindrical Grinding Machines - Internal, and our set up is situated in Pune, Maharashtra, India.
| Discription | Unit | Value |
| CAPACITY | ||
| Maximum Grinding Diameter | mm | 200 |
| Minimum Grinding Diameter | mm | 5 |
| Grinding Depth Max. | mm | 100 |
| Maximum Component weight (including Chuck) | kg | 50 |
| CROSS TABLE INFEED (X-AXIS) | ||
| Table Stroke | mm | 200 |
| Rapid Feed Rate | m/min | 10 |
| Resolution | mm | 0.001 |
| LONGITIUDINAL TABLE (Z-AXIS) | ||
| Table Stroke | mm | 300 |
| Rapid Feed Rate | m/min | 10 |
| Resolution | mm | 0.001 |
| WORK HEAD | ||
| Spindle Speed (Variable) | rpm | 100 - 1000 |
| Swivelling range | deg. | -5o to 60o |
| Motor Power | kW | 1.5 |
| INTERNAL GRINDING HEAD | ||
| Spindle Speed (Extra Heavy Duty Belt Driven) | rpm | 18000 |
| Motor Power | kW | 3.7 |
| Optional Spindle (Extra Heavy Duty Belt Driven) | rpm | * 10000 / 12500 / 15000 / 22400 / 28600 |
| High Frequency Spindle (Optional) | rpm | On Request |
| CONTROL SYSTEM | FANUC / SIEMENS | |
| General | ||
| Operation Voltage | Volt | 415 +/- 10% AC 3 Phase |
| Floor Space | mm | L 2500 mm x W 1700 mm |
