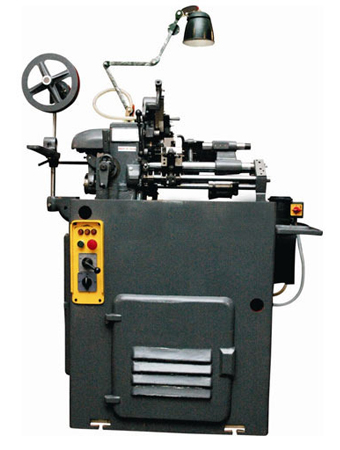

We are Authorised Dealer, Supplier, Service Provider of Automatic Lathe Machines, and our set up is situated in Pune, Maharashtra, India.
| Models with Mechnical Chucking | T - 25 | T - 42 | T - 60 | |
| Max Spindle Capacity | ||||
| For Round Bars | mm | 25 | 42 | 60 |
| For Hexagonal Bars | mm | 22 | 36 | 52 |
| For Square Bars | mm | 18 | 29 | 42 |
| Distance From Collet to Face of Tail Stock | mm | 240 | 395 | 395 |
| Turning Length with Longitudinal | ||||
| Turning Attachment | mm | 70 | 100 | 100 |
| Stroke of Cross Slide | mm | 22 | 43 | 43 |
| Tail Stock Travel | mm | 100 | 165 | 165 |
| Max. Capacity of Tailstock Collet | mm | 13 | 22 | 22 |
| Spindle Speeds (12 Speeds) Min. | 550 | 200 | 160 | |
| Max | 4000 | 2500 | 2000 | |
| Production Rate (Approx) Min | 28 | 12 | 12 | |
| Par Hour | 2100 | 1245 | 1245 | |
| Power Rating of Work | ||||
| Spindle Motor (1400 / 2800 R.P.M.) KW/HP | 1.2/1.6 | - | - | |
| Spindle Motor (700 / 1400 R.P.M.) KW/HP | - | 2.8/3.5 | 2.8/3.5 | |
| Power Rating of Camshaft Motor | ||||
| (1400 R. P. M.) KW/HP | 0.37/0.5 | - | - | |
| Power Rating of Camshaft Motor | ||||
| (700/1400 R.P.M.)KW/HP | - | 0.75/1 | 0.75/1 | |
| Net Weight of Complete Machine | kg. 670 | kg. 1250 | kg. 1300 | |
| Floor Space not Including bar Feed | MTR | 0.48x0.81 | 0.8x1.6 | 0.8x1.6 |
| Packing Case | CU. MTR | 1.8 | 3 | 3.6 |
Standard Equipment
Cross Slide , Rocker Type tool holders front and rear, with one fine adjustment each, Limiting stop for over loading, Tail stock with quill for sleeve collet A-3, Wight Operated bar feed length 3.5m, Motor for main spindle with jack shaft and V-belt, Feed Motor, Change gear set (11 Nos), Limit stopper for bar end Coolant Pump, switches and motor fitted in the machine base ready for connection, Front & rear sheet metal splash guard.
Standard Accessories
- Handle Crank
- Weight
- Extra Weight
- Rope for bar feed
- Pusher rod
- Stand bar support head
- LN Key set
- Tool Tray
- Chuck open spanner
- Spindle nut's spanner
- Double end spanner 6 to 19 & 22 x 24
- Sq angle box spanner 6mm
- Sq. box spanner 6mm
Extra Accessories
- Single vertical slide
- Double vertical slide
- Long turning attachment front & real
- Open tool holder front & rear
- Extra long Quill
- Quill for MT2
- Step turning tool holder W-35
- Automatic electric shutter
- Silent bar feed assembly
