We are Authorised Dealer, Supplier, Service Provider of Thread Rolling Machines, and our set up is situated in Pune, Maharashtra, India.

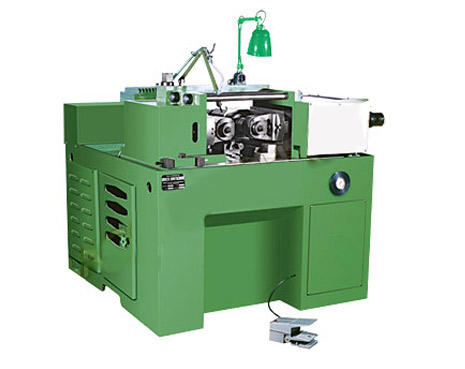

The thread rolling machine is most compact form & thread rolling machine available in the market. its unique design concept is primarily aimed at covering the widest universal range of applications. The rolling of threads, knurls, cross knurls, worms & spindle etc. as well as burninshing can be carried out very effectively.. By means of tilting rolling spindle the longer working piece such as bars upto 6 mtrs long can be rolled by the through feed rolling method.
Salient Features
- Fabricated steel frame
- Hardened & ground "T" Type slid for better accuracy & rigidity
- Range of cycle time & rolling speeds
- High production rate
- User friendly setup & running procedure
- Low pressure hydraulic power pack to ensure to low heat & minimum maintenance
- High efficient & heavy dusty gear box for continuos operation
| TECHNICAL SPECIFICATION | 24B | 42D | 80A |
| Workpiece 0 (infeed) | 3-24 mm | 3-42 mm | 10-80 mm |
| Max pitch of thread (Standard V Thread} | 3 mm | 5 mm | 10 mm |
| Max serrations pitch | 1.0 mm | 1.6 mm | 3 mm |
| Max. Die. Width | 80 mm | 150 mm | 200 mm |
| Max. Through feed thread length | 6 meter | 6 meter | 6 meter |
| Max. Rolling Force (infinitely adjustable) | 8 tons | 10/20 tons | 30 tons |
| Rolling & Idle time (infinitely adjustable) | 30sec. Max. | 30sec. Max. | 60sec. Max. |
| Spindle Axis swivel for through feed | 5 o | 5 o | 12 o |
| Roll spindle | 40 mm | 54 mm | 69.85 mm |
| Max Rolling Die | 12 mm | 180 mm | 220 mm |
| Roll spindle speed (RPM) | 60/90 | 20/40/60 | 16/22/34/73/110/150 |
| Main Motor | 2.2 kW | 3.7 kW/5.6 kW | 11 kW |
| Hydraulic powerpack motor | 0.75 kW | 1.5 / 2.2 kW | 2.2 kW |
| Coolant pump | 1/8 HP | 1/8 HP | 1/2 HP |
| Electrical connection | ------ 415 V, 50 Hz, 3 Phase ------ | ||
| Approx. Weight | 1000 kg | 2200 kg | 3500 kg |
