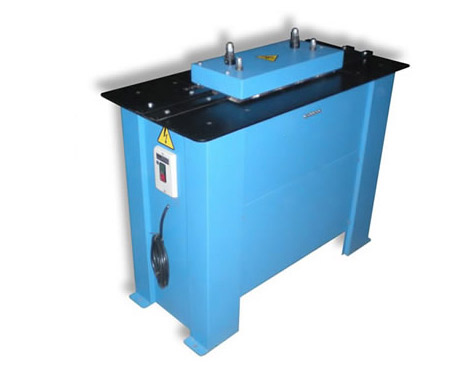

We are Authorised Dealer, Supplier, Service Provider of Lock Forming Machines, Auxiliary Roll Forming Machines, and our set up is situated in Pune, Maharashtra, India.
| SPECIFICATIONS | |
| Capacity | 20 to 24 Ga (0.5 to 1mm) use approx.1" (25mm) of material. |
| Depth of Pocket | 5/16" (8mm) width of hammer-over edge adjustable up to 3/8" (9.5mm). |
| Speed | 26' (8mtrs) per min. |
| Motor | 1HP, 3Ph AC Motor. Manual Switch. |
| Drive | V-belt. |
| Stand | ARC welded steel. Heavy top plate. |
| Features | All steel forming head, hardened and ground shafts. Hardened alloy steel forming rolls, machine cut gear and needle type roller bearing through out. |
| Dimenstions | 39.5" (1000mm) x 31.5" (800mm) x 19.5" (500mm). |
| Shipping Wt. | Approx. 125Kgs. |
