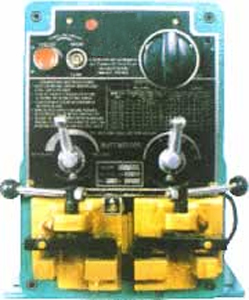

Butt Welding Machines

Model
Job
Welding Range0
Capacity
Grinder Weight (App) Dimensions (App) Input Voltage Input Current Duty Cycel
325 Carbon Steel Blades 3 - 25 mm 1/8" to 1" 3KVA (Nominal) 0.12 KVA 25 Kgs (Nett)
35 KGS (Gross)
275x235x225mm 230V 50 Cycles 13 Amps 5%
535 Carbon Steel Blades 6 - 37 mm 1/4" to 1 1/2" 5KVA (Nominal) 0.12 KVA 28 Kgs (Nett)
37 Kgs (Gross)
275x255x225mm 230V 50 Cycles 18 Amps 5%
631 Bi-Metal Blades 12-31 mm 12 KVA 0.25 HP 54 Kgs. 230x400x405mm 2.0 400V 50 Cycles 28 Amps 5%
640 Bi-Metal Blades 15-41 mm 15 KVA 0.25 HP 65 Kgs 250x425x400mm 2.0 400V 50 Cycles 40 Amps 5%
