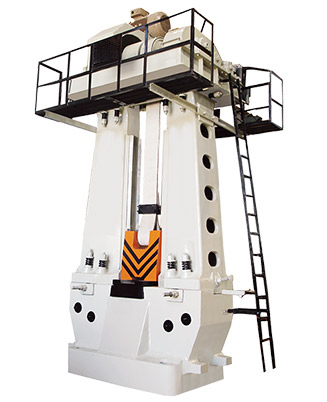

We are Authorised Dealer, Supplier, Service Provider of Forging Hammers, Forging Hammer Machines, and our set up is situated in Pune, Maharashtra, India.
| Specification | |||||||||
| Size of Hammer | Kgs. | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Weight of Tup | Kgs | 550 | 800 | 1200 | 1800 | 2200 | 2700 | 3200 | 4100 |
| Space between Slides | mm. ln. |
508 20 |
560 22 |
635 25 |
711 28 |
800 31½ |
813 32 |
864 34 |
889 35 |
| Maximum Stroke | mm. Ft.ln. |
1525 5'0" |
1675 5'6" |
1675 5'6" |
1830 6'0" |
1830 6'0" |
1981 6'6" |
2134 7'0" |
2311 7'7" |
| Tup (Front to Back) | mm. ln. |
370 14½ |
410 16 |
455 18 |
533 21 |
597 23½ |
660 26 |
660 26 |
864 34 |
| Total Height of Machine | mm. Ft.ln. |
5260 17-3 |
5740 18-10 |
6000 19-8 |
6450 21-2 |
6790 22-3 |
6865 22-6 |
7390 24-3 |
8839 29 |
| Max. Wt.of the top die | Kgs. Lbs. |
150 330 |
225 500 |
300 660 |
450 992 |
600 1322 |
750 1653 |
900 1984 |
1200 2645 |
| Max. No. of Blows per minute | Short Stroke Full Stroke | 135 90 |
120 80 |
100 70 |
75 50 |
75 50 |
55 35 |
55 30 |
45 25 |
| Approximate Gross Weight | M.Tons | 21 | 27 | 30 | 48 | 56 | 68 | 78 | 102 |
| Max. weight of job | kgs | 1 | 2 | 3 | 10 | 20 | 35 | 50 | 75 |
| Electric Motor | H.P. | 30 | 40 | 50 | 75 | 100 | 125 | 150 | 200 |
