Universal Milling Machine

Universal Milling Machine

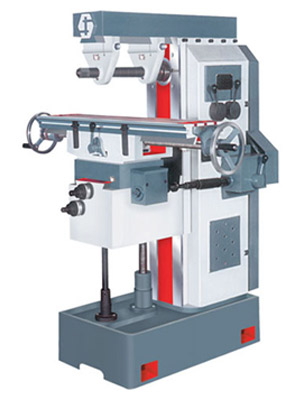

Universal Milling Machine ( Longitudinal Feed Auto )
SPECIFICATIONS
Working Surface mm 1050 x 250
Number of T-Slots 3
Width of T-Slots 15 mm
Pitch of T-Slots 62 mm
Maximum Distance from Spindle Centre to Underside of Over Support 125 mm

MOVEMENTS
Longitudinal Movement of the Table by Lever / Screw 600 mm
Cross Movement of the Table by Screw 230 mm
Vertical Movement of the Table by Screw 450 mm
MILLING SPINDLE
Spindle Bore 17 mm
Inside Taper ISO - 40
Arbor 25.4 mm
REVOLUTION OF MILLING SPINDLE
Number of Spindle Speed 6
Range of Spindle Speed 50, 85, 110, 240, 350,525 RPM
Number of Feeds 3 Feeds
(0.9, 1.4, 2.25 Per Minute )

ELECTRICAL
Main Drive Electric Motor 2 HP, 1440 RPM, 440 V. 3 Phase
Coolant Motor 0.11 KW, 2700 RPM

OTHER DIMENSIONS
Floor Space 550 x 925 mm
Height 1500 mm
Coolant Tank Capacity 20 Ltr.

* Specifications are Subject to Change Without Notice
